Product Overview
Samsung QB65N Overview

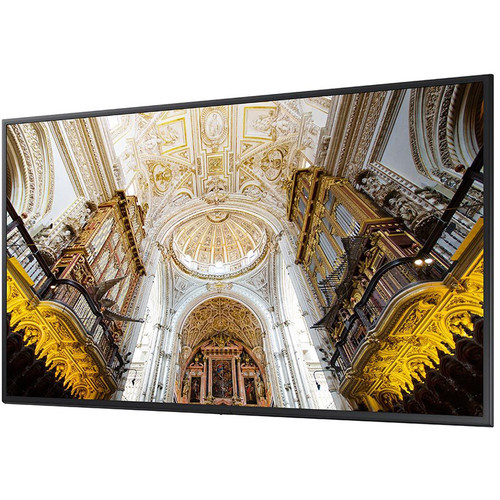

Advertise your product or business digitally with the Samsung QB65N 65" Class 4K UHD Commercial Smart LED Display. It features 350 cd/m² of brightness with a 6000:1 typical contrast ratio to help enhance visibility in bright environments. The QB65N is rated for 16/7 use and is IP5X certified, making it suitable for a variety of installation types. It has a DVI-D, two HDMI, and two USB ports to provide a variety of connectivity options. For added convenience, the QB65N includes a remote control.
Key Features
- 4K UHD (3840 x 2160) Native Resolution
- 8 ms Response Time
- 350 cd/m² Brightness
- 6000:1 Typical Contrast Ratio
- Built-In Wi-Fi & Ethernet Connectivity
- DVI-D, 2 x HDMI, 2 x USB Inputs
- Dual 10W Speakers
- Digital Signage-Capable
- Rated for 16/7 Use
Upscale Shared Content
The QB-N series uses Samsung's Intelligent Picture Quality technology to upscale your content to near-UHD quality for optimized text and imagery with crisp edges and fine detail.
Simple Content Management
The embedded MagicINFO Player S6, backed by the Tizen operating system, helps boost the display's overall performance, enabling simplified content management for seamless content transition and playback.
Secure Remote Collaboration
The Samsung KNOX platform provides three-layer protection while also securing and controlling USB and user network exchange through dedicated device management, facilitating remote, computer-free meetings with reduced risk and complexity.
Continuous Display Performance
Monitor and diagnose irregularities from nearly any remote location with Samsung's Network Operations Center.
Designed for Convenient Display Management
The centralized IR receiver helps ensure easier, more flexible user control. Each display receives signals on individual panels via Central IR, and you can navigate the IR functionality from various locations to further augment uninterrupted performance.
Dust-Free Design
The IP5X-rated design helps ensure continuous content delivery, allowing the display to be installed in transportation hubs and other areas where dust, dirt, and lighting exposure could otherwise damage a display.
Additional Features
- 72% color gamut support
- MEGA dynamic contrast ratio
- Built-in temperature sensor
- Clock battery (168 hours clock keeping)
- Auto Source Switching & Recovery
- LFD Home UI
- Button Lock
- Hot key option
- Plug & play (initial setting)
- 48 kB L1 instruction cache, 32 kB L1 data cache, 2 MB L2 cache
Samsung QB65N Specs
Display
| Screen Size (Diagonal) | 64.5" |
| Resolution | 3840 x 2160 |
| Panel Type | LCD |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Brightness | 350 cd/m² (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 56.24 x 31.63" / 1428.48 x 803.52 mm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 6000:1 |
| Response Time | 8 ms (GtG) |
| Horizontal Frequency | 30 to 81 kHz |
| Vertical Frequency | 48 to 75 Hz |
| Dot Pitch | 0.372 x 0.372 mm |
| Backlighting Technology | LED |

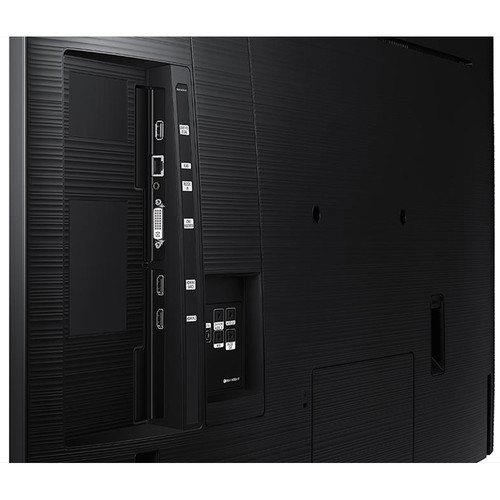

Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI Audio, Video 1 x DVI-D Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x 1/8" / 3.5 mm – Audio |
| USB Ports | 2 x USB 2.0 Type-A |
| Ethernet Ports | 1 |
| Other I/O | 1 x 1/8" / 3.5 mm Control 1 x 1/8" / 3.5 mm IR Input |
| Wi-Fi | Built-in |
General
| TV Tuner | No |
| Display Orientation | Landscape, Portrait |
| HDCP Support | Yes, Version 2.2 |
Surface
| Haze Level | 2% |
Audio
| Built-In Speakers | Yes, 2 x 10 W |
| Speaker Configuration | 2-Channel |
Hardware
| Operating System | Tizen 4 |
| Processor | 1.7 GHz ARM Cortex-A72 Quad-Core |
| Storage | 8 GB |
| RAM | 2.5 GB LPDDR4 1500 MHz |
Convenience
| Supported Video File Types | H.263, H.264/AVC, H.265/HEVC, MPEG2, MPEG4, VC-1, VP8, VP9 |
| Supported Audio File Types | AC3 |
| Supported Photo File Types | JPEG, PNG |
Electrical
| Power Consumption | Maximum: 176.0 W Typical: 125.0 W Standby: 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type | Internal |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
| Certifications | ENERGY STAR, as per Manufacturer |
Physical

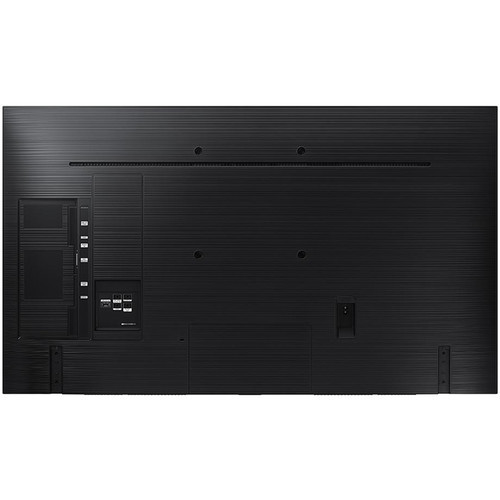

| Wall Mounting | 400 x 400 mm |
| IP Rating | IP5X |
| IR Sensor | Yes, Detachable |
| Bezel Thickness | 13.5 mm (Right/Top/Left) 17.7 mm (Bottom) |
| Duty Cycle | 16 Hours / 7 Days |
| Dimensions | 57.4 x 33.0 x 2.3" / 1457.5 x 837.3 x 59.4 mm |
| Weight | 55.56 lb / 25.2 kg |
Packaging Info
| Package Weight | 73 lb |
| Box Dimensions (LxWxH) | 62.5 x 38 x 7" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
