Product Overview
Samsung QB85R Overview
Advertise your product or business digitally with the Samsung QB85R 85" Class HDR 4K UHD Commercial Smart LED Display. It features 350 cd/m² of brightness with a 4000:1 typical contrast ratio to help enhance visibility in bright environments. The QB85R is IP5X certified, making it suitable for a variety of installation types. It has a DVI-D, two HDMI, and two USB ports, plus Wi-Fi and Bluetooth connectivity to provide a variety of interface options. For added convenience, the QB85R includes a remote control.
Key Features
- 4K UHD (3840 x 2160) Native Resolution
- HDR10 & HDR10+ Compatibility
- 8 ms Response Time
- 350 cd/m² Brightness
- 4000:1 Typical Contrast Ratio
- Built-In Wi-Fi, Ethernet, and Bluetooth
- DVI-D, 2 x HDMI, 2 x USB Inputs
- Dual 10W Speakers
- Digital Signage-Capable
- Supports up to 1 Billion Colors

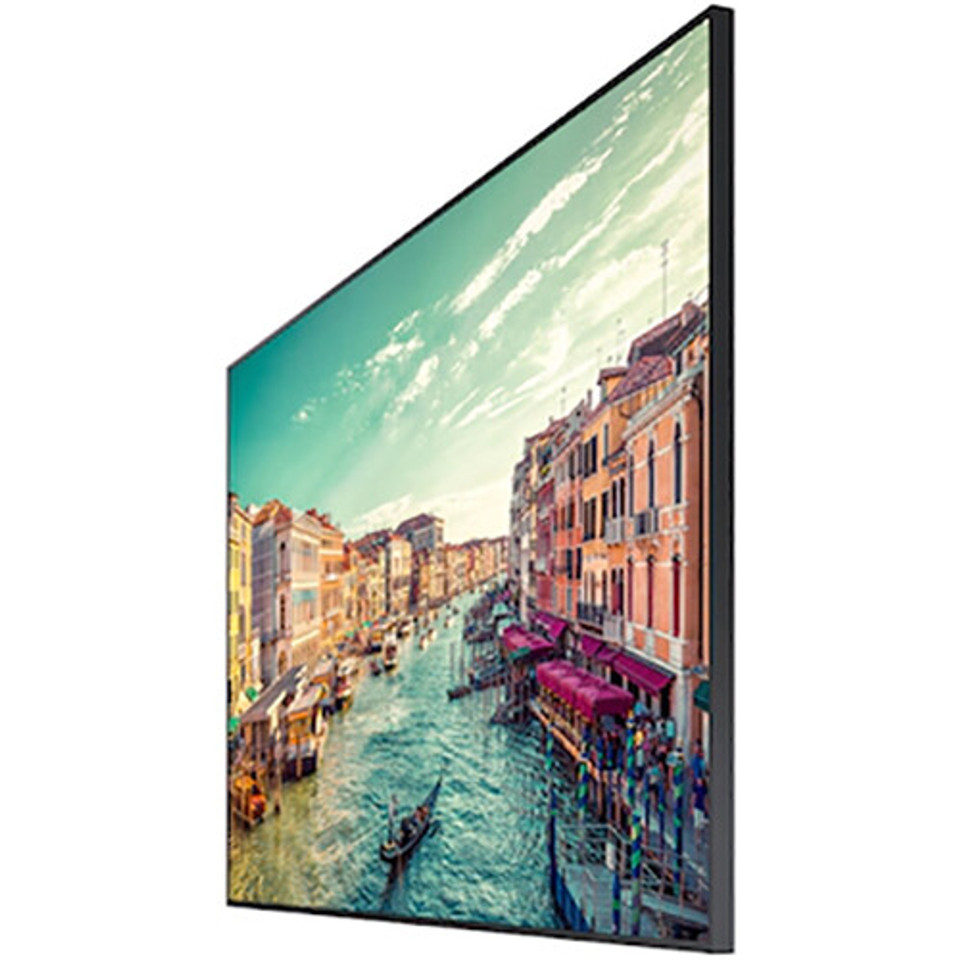

Slim and Symmetrical Design
Narrow bezels and a symmetrical design allow for a seamless integration in to virtually any environment with simplified mounting and installation.
Dynamic Crystal Color
Experience clear, lifelike color with up to a billion shades of color, which is 64 times more than conventional UHD displays. QBR Series displays deliver accurate results virtually every time, so you can see every color in a rainbow or every shade in a sunset.
Cisco Certified Compatible Display
The QBR Series is fully compatible with Cisco WebEx Room Kit products. The Cisco WebEx Room Kit is a powerful video collaboration tool that integrates a camera, codec, speakers, and microphones into a single device. Combined with Samsung's QBR displays, you get a powerful conferencing solution for your business.
4K UHD Picture Quality
4K UHD coupled with 350 nits of brightness allows for true color and clarity. Experience the pure colors, sharp contrast, and high brightness you expect.
HDR Powered by HDR10+
Experience enhanced brightness, greater detail in blacks, and authentic color with HDR powered by HDR10+.
Intelligent UHD Upscaling
UHD upscaling is a unique four-step picture improvement process that enables the clarity and detail of standard and high-definition content to be enhanced to the best possible picture quality.
All-in-One Digital Signage Solution
Samsung's SMART Signage Platform 6.0 and the embedded MagicINFO Player S6, backed by the Tizen operating system, boosts your display's overall performance through system-on-chip (SoC) technology and allows for easy content management and playback, without the need for an external set-back box or PC.
Built-In Wi-Fi and Bluetooth
Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.

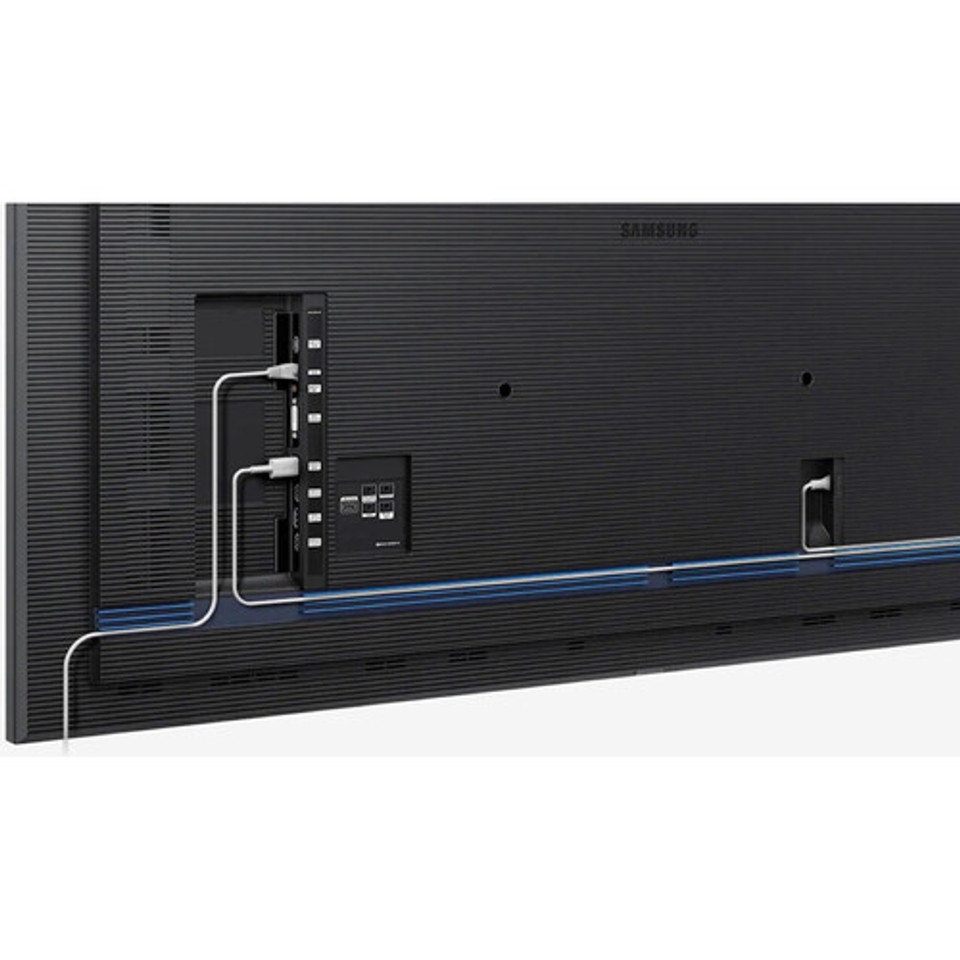

Clean Cable Management
The back of the QBR series is designed with grooves that allow for cables to be threaded through, keeping your connections out of sight and leaving the elegant design of the display uncompromised.
Elevate the Power of Your Displays
Streamline signage management with Samsung MagicINFO. The all-in-one platform delivers seamless authoring, deployment, and playback on remote digital signage. Your content teams can update message designs and schedules from onsite or remote locations as needed.
Samsung QB85R Specs
Display
| Screen Size (Diagonal) | 84.5" |
| Resolution | 3840 x 2160 |
| Panel Type | LCD |
| Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
| Color Gamut | 92% DCI-P3 92% CIE1976 |
| HDR Compatibility | HDR10, HDR10+ |
| Brightness | 350 cd/m² (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 73.7 x 41.5" / 1872 x 1053 mm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 4000:1 |
| Response Time | 8 ms (GtG) |
| Backlighting Technology | Edge LED |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI 2.0 – Audio, Video (Side) 1 x DVI-D – Video (Side) 1 x 1/8" / 3.5 mm – Audio (Rear) |
| Output Ports | 1 x 1/8" / 3.5 mm – Audio (Rear) |
| USB Ports | 1 x USB 2.0 Type-A (Rear) 1 x USB 2.0 Type-A (Side) |
| Ethernet Ports | Side: 1 |
| Control | IR via 1/8" / 3.5 mm Input RS-232C via 1/8" / 3.5 mm Input RS-232C via 1/8" / 3.5 mm Output |
| Wi-Fi | Built-in |
| Bluetooth | Yes |
General
| TV Tuner | No |
| Display Orientation | Landscape, Portrait |
| HDCP Support | Yes, Version 2.2 |
Audio
| Built-In Speakers | Yes, 2 x 10 W |
| Speaker Configuration | 2-Channel |
Hardware
| Operating System | Tizen 4.0 |
| Processor | 1.7 GHz ARM Cortex A72 Quad-Core |
| Storage | 8 GB |
| RAM | 2.5 GB LPDDR4 1500 MHz |
Convenience
| Supported Video File Types | H.263, H.264/AVC, H.265/HEVC, MPEG, MPEG2, MPEG4, VC-1, VP8, VP9 |
| Supported Audio File Types | AC3, M4A, MP1, MP2, MP3, MPA |
| Supported Photo File Types | JPEG, PNG |
Electrical
| Power Consumption | Maximum: 198.0 W Typical: 143.0 W Standby: 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type | Internal |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 10 to 80% |
| Storage Humidity | 5 to 95% |
| Certifications | ENERGY STAR, as per Manufacturer |
Physical
| Wall Mounting | 600 x 400 mm |
| IP Rating | IP5X |
| IR Sensor | Yes |
| Bezel Thickness | 10.9 mm (Right/Top/Left) 12.9 mm (Bottom) |
| Duty Cycle | 16 Hours / 7 Days |
| Dimensions | 74.7 x 42.6 x 2.2" / 1897.8 x 1080.8 x 56.7 mm |
| Weight | 106.7 lb / 48.4 kg |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
