Product Overview
Samsung QB85R Overview
Advertise your product or business digitally with the Samsung QBR-N 85" Class HDR 4K UHD Commercial Smart LED Display. It features 350 cd/m² of brightness with a 4000:1 typical contrast ratio to help enhance visibility in bright environments. The QBR-N is IP5X certified, making it suitable for a variety of installation types. It has a DVI-D, two HDMI, and two USB ports, plus Ethernet connectivity to provide a variety of interface options. For added convenience, the QBR-N includes a remote control.
Key Features
- 4K UHD (3840 x 2160) Native Resolution
- HDR10 & HDR10+ Compatibility
- 8 ms Response Time
- 350 cd/m² Brightness
- 4000:1 Typical Contrast Ratio
- Ethernet Connectivity
- DVI-D, 2 x HDMI, 2 x USB Inputs
- Dual 10W Speakers
- Digital Signage Capable
- IP5X Rating

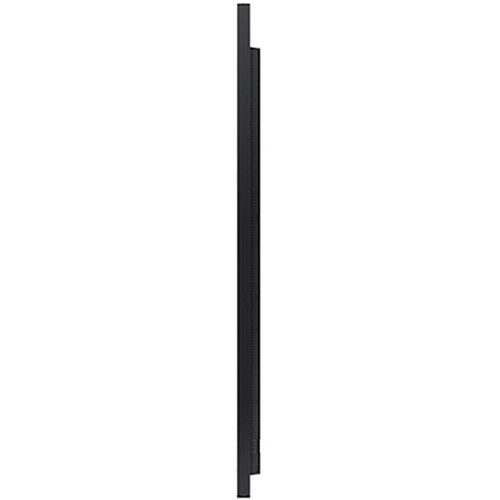

Slim, Symmetrical Design
Narrow bezels and a symmetrical design help provide seamless integration into nearly any environment with seamless mounting and installation.
No Embedded Wireless Connectivity
The QBR-N series has no Wi-Fi or Bluetooth module embedded, making it an ideal solution where network security is a priority.
Bright 4K UHD Screen
4K Ultra HD coupled with 350 cd/m² brightness delivers true 4K color and clarity.
Dynamic Crystal Color
Experience crystal-clear, lifelike color with up to a billion shades of color, 64 times more than conventional UHD displays. See every color in a rainbow or every shade in a spectacular sunset.
Intelligent UHD Upscaling
UHD upscaling is a unique four-step picture improvement process that enables the clarity and detail of standard- and high-definition content to be enhanced to the best possible picture quality.
HDR Powered by HDR10+
Experience superior brightness, greater detail in blacks, and authentic color with HDR powered by HDR 10+.
Cisco Certified Compatible Display
The QBR series is compatible with Cisco WebEx Room Kit products, allowing you to simply integrate it into preexisting installations.
SMART Signage Platform 6.0 with MagicINFO Player S6
Samsung's SMART Signage Platform 6.0 and the embedded MagicINFO Player S6, backed by the Tizen operating system, are designed to boost the display's overall performance through System-on-Chip (SoC) technology and allow for easy content management and playback without an external set-back box or computer.

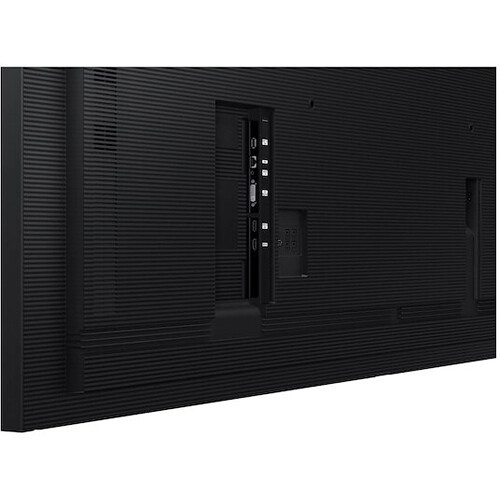

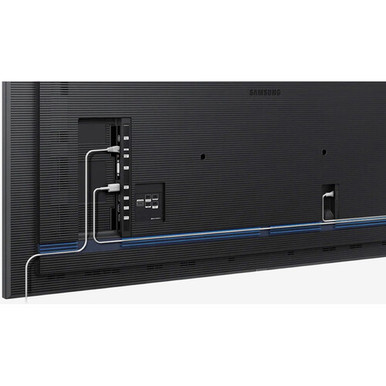

Integrated Cable Management
The back of the QBR series has grooves that allow for cables to be threaded through, helping to keep them out of sight.
Additional Features
- MEGA dynamic contrast ratio
- Temperature sensor
- Clock battery (up to 168 hours of clock keeping)
- Auto Source Switching & Recovery software
- LFD Home UI
- Button lock
- Hot key option
- Plug & play (initial setting)
- 48kB L1 instruction cache, 32kB L1 data cache, 2MB L2 cache
Samsung QB85R Specs
Display
| Screen Size (Diagonal) | 84.5" |
| Resolution | 3840 x 2160 |
| Panel Type | LCD |
| Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
| Color Gamut | 92% DCI-P3 92% CIE1976 |
| HDR Compatibility | HDR10, HDR10+ |
| Brightness | 350 cd/m² (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 4000:1 |
| Response Time | 8 ms |
| Backlighting Technology | Edge LED |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI 2.0 – Audio, Video (Side) 1 x DVI-D – Video (Side) 1 x 1/8" / 3.5 mm – Audio (Rear) |
| Output Ports | 1 x 1/8" / 3.5 mm – Audio (Rear) |
| USB Ports | 1 x USB 2.0 Type-A - Audio/Photo/Video (Rear) 1 x USB 2.0 Type-A - Audio/Photo/Video (Side) |
| Ethernet Ports | Side: 1 |
| Control | RS-232C via 1/8" / 3.5 mm Input/Output IR via 1/8" / 3.5 mm Input |
General
| TV Tuner | No |
| Display Orientation | Landscape, Portrait |
| HDCP Support | Yes, Version 2.2 |
Audio
| Built-In Speakers | Yes, 2 x 10 W |
| Speaker Configuration | 2-Channel |
Hardware
| Operating System | Tizen 4.0 |
| CPU | 1.7 GHz Cortex A72 Quad-Core |
| Storage | 8 GB |
| RAM | 2.5 GB LPDDR4 1500 MHz |
Convenience
| Supported Video File Types | H.263, H.264/AVC, H.265/HEVC, MPEG, MPEG2, MPEG4, VC-1, VP8, VP9 |
| Supported Audio File Types | AC3 |
| Supported Photo File Types | JPEG, PNG |
Electrical
| Power Consumption | Maximum: 198.0 W Typical: 143.0 W Standby: 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
| Certifications | ENERGY STAR, as per Manufacturer |
Physical
| Wall Mounting | 600 x 400 mm |
| IP Rating | IP5X |
| Bezel Thickness | 10.9 mm (Right/Top/Left) 12.9 mm (Bottom) |
| Duty Cycle | 16 Hours / 7 Days |
| Dimensions | 74.7 x 42.6 x 2.2" / 1897.8 x 1080.8 x 56.7 mm |
| Weight | 106.7 lb / 48.4 kg |
Packaging Info
| Package Weight | 161 lb |
| Box Dimensions (LxWxH) | 82 x 48.75 x 10.5" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
