Product Overview
Samsung QE75T Overview

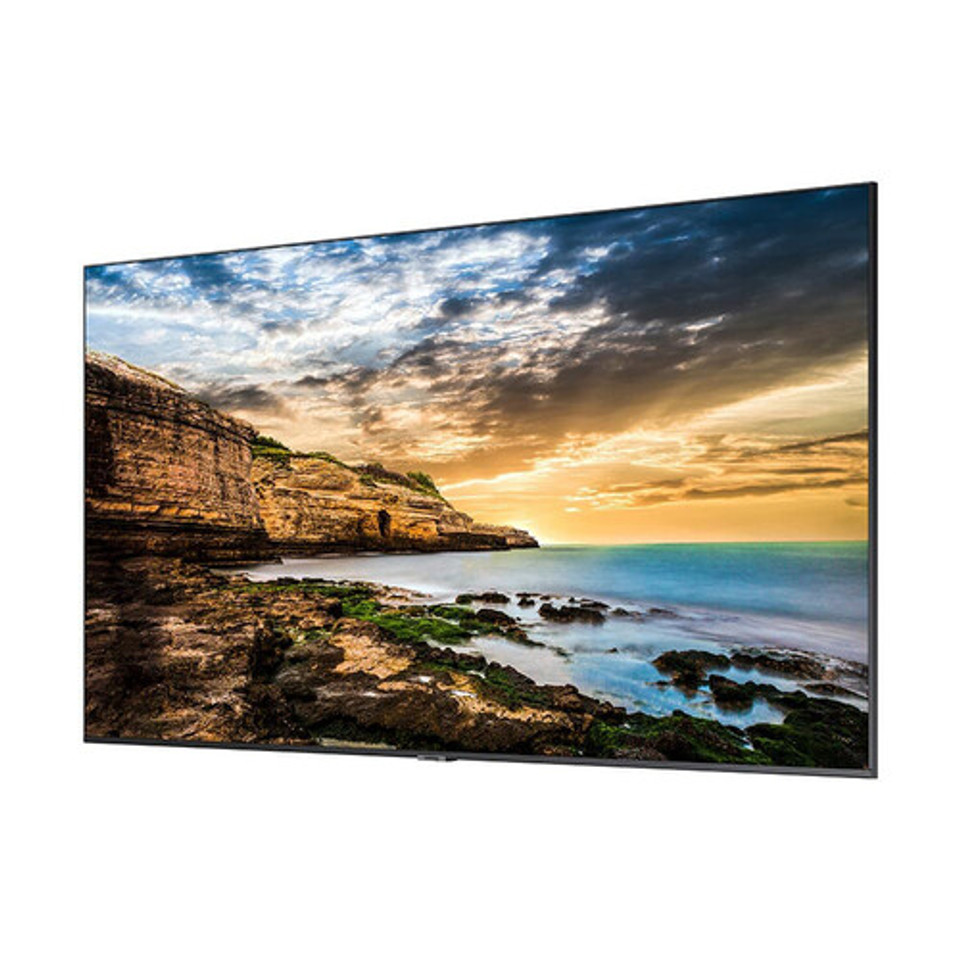

Advertise your product or business digitally with the Samsung QET 75" Class 4K UHD Commercial LED Display. It features 300 cd/m² of brightness to help enhance visibility in bright environments. It has two HDMI inputs and one USB port for playback of digitally stored multimedia. The onboard Tizen 4.0 operating system with embedded MagicINFO Lite Player provide simplified signage solutions for your business. As an added convenience, the QET includes a remote control.
Key Features
- 4K UHD (3840 x 2160) Native Resolution
- 300 cd/m² Brightness
- 2x HDMI Inputs, 1x USB 2.0 Port
- Dual 10W Speakers
- Digital Signage-Capable
- IP5X Rating
- Rated for 16/7 Usage
- Remote Control Included
Powerful Crystal UHD Picture Quality
With an ultra-fast Crystal 4K processor and Crystal UHD resolution, you can capture your customer's attention by showcasing lifelike images and intricate details better than ever before. Content will be displayed with more accurate and smoother color in brilliant 4K, no matter the source.
Load and Share Content with Ease
Each QET series display leverages the integrated MagicINFO Lite Player to bring a range of on-demand or pre-scheduled images and videos to life. You can load new content either by connecting your personal laptop directly to the display's built-in port or transferring from a compatible USB drive. For added convenience, the QET series allows you to store content in a specific folder that will play without the need for separate scheduling.
Control Displays in Multiple Locations Instantly
A connection to the MagicINFO server allows remote monitoring and management of QET series displays. Device information, content playback schedules, network data monitoring, time scheduling, alarms, and various controls are all available remotely, without needing to be in front of the displays.
Slim and Modern Design
The sleek, elegant, and minimalistic design helps to draw customers into the screen's content from any angle. And with a super-slim bezel, the QET series keeps the focus on your content and blends seamlessly into virtually any business environment.
On-Chip Cache Memory
L1 Instruction Cache: 48kB
L1 Data Cache: 32kB
L2 Cache: 2MB
L1 Data Cache: 32kB
L2 Cache: 2MB
Additional Features
- MEGA dynamic contrast ratio technology
- UHD Signage with built-in MagicInfo Lite software
- Integrated temperature sensor
- Clock battery with up to 168 hours of clock keeping
- Auto Source Switching & Recovery software
- LFD Home UI
- Button Lock
- Hot Key Option
- Plug & Play (initial setting)
- Optional touch overlay available
Samsung QE75T Specs
Display
| Screen Size (Diagonal) | 75" |
| Resolution | 3840 x 2160 |
| Panel Type | LCD |
| Brightness | 300 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 4000:1 |
| Response Time | 8 ms |
| Backlighting Technology | Direct LED |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI 2.0 Audio, Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x 1/8" / 3.5 mm – Audio |
| USB Ports | 1 x USB 2.0 Type-A |
| Ethernet Ports | 1 |
| Control | RS-232C via 1/8" / 3.5 mm Input |
General
| HDCP Support | Yes, Version 2.2 |
Audio
| Built-In Speakers | Yes, 2 x 10 W |
| Speaker Configuration | 2-Channel |
Hardware
| Operating System | Tizen 4.0 |
| CPU | 1.7 GHz Cortex A72 Quad-Core |
| Storage | 8 GB |
| RAM | 2 GB LPDDR4 1500 MHz |
Convenience
| Supported Video File Types | H.263, H.264/AVC, MPEG, MPEG2, MPEG4, VC-1, VP8, VP9 |
| Supported Audio File Types | AC3 |
| Supported Photo File Types | JPEG, PNG |
Electrical
| Power Consumption | Typical: 171.0 W Maximum: 253.0 W Standby: 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
Physical
| Wall Mounting | 400 x 400 mm |
| IP Rating | IP5X |
| Duty Cycle | 16 Hours / 7 Days |
| Dimensions | 65.9 x 37.7 x 2.4" / 167.4 x 95.8 x 6.1 cm |
| Weight | 68.1 lb / 30.9 kg |
Packaging Info
| Package Weight | 91.5 lb |
| Box Dimensions (LxWxH) | 72 x 43.9 x 7.56" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
