Product Overview
Know your gear
The QMB Series combines enhanced professional features, streamlined setup and maintenance, and stunning design to elevate any business environment. From improving collaboration to showcasing rich content in new formats, QMB delivers innovation and efficiency to help businesses reach their goals.
- 75" Diagonal Class QMB Series LED-backlit LCD display
- 4K UHD (2160p) 3840 x 2160
- digital signage
ManufacturerSamsung LFD
BrandSamsung
Product LineSamsung
ModelQM75B
SeriesQMB Series
TypeLED-backlit LCD flat panel display
Commercial UseYes
Commercial TargetingDigital signage
LCD Display TechnologyVA
LCD Backlight TechnologyLED backlight
Video InterfaceHDMI
HDMI Ports Qty3
PC InterfaceDisplayPort
Diagonal Class75 inch
Diagonal Class (metric)190 centimetre
Resolution3840 x 2160
Display Format4K UHD (2160p)
Response Time8 millisecond
Image Aspect Ratio16:9
Image Contrast Ratio4000:1
Viewing Angle178°
Viewing Angle (Vertical)178°
Brightness500 candela per square metre
Coating44% Glass Haze, Anti-glare
DesignSlim Design
Picture Enhancements92% Color Gamut (DCI-P3, CIE 1976), Dynamic Crystal Color, Mega Dynamic Contrast Ratio
ModesDirector Mode
Additional FeaturesSmart Calibration
Operating Hour24 Hours
FeaturesTizen Zero Config
Video ProcessorQuantum 4K
TV Tuner PresenceNo
Tuners ConfigurationNo tuner
USB PortYes
USB Ports Qty2
Storage Capacity16 GB
Operating SystemTizen OS 6.5
ConnectivityBluetooth, LAN, Wi-Fi
Connect & ShareSamsung Smart View+

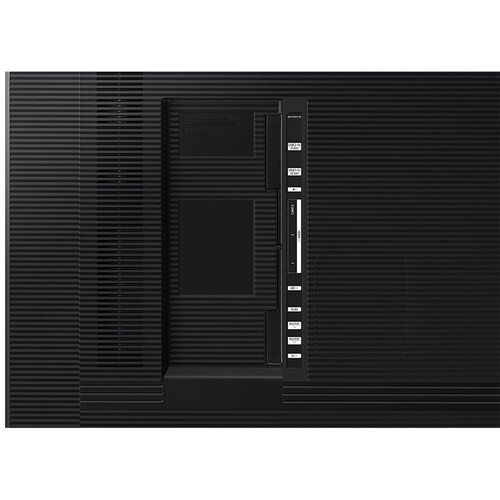

Connector Type2 x USB, 3 x HDMI input, Audio line-out, DisplayPort input, Infrared input, LAN input, RS-232 input, RS-232 output
TypePower supply
Nominal VoltageAC 120/230 V
Voltage RequiredAC 100-240 volt
Frequency Required50/60 hertz
Power Consumption Sleep0.5 watt
Power Consumption (On mode)231 watt
Color CategoryBlack
Flat Panel Mount Interface400 x 400 mm
VESA CompatibilityYes
Compliant StandardsEMC Class B, HDCP 2.2, REACH, RoHS, Safety 60950-1, Safety 62368-1, WEEE
EPEAT CompliantYes
ENERGY STAR CertifiedYes
Width66.2 inch
Depth2 inch
Height37.8 inch
Weight84.44 lbs
CommentsWithout stand
Shipping Width73.7 inch
Shipping Depth8.8 inch
Shipping Height44.4 inch
Shipping Weight108.03 lbs
Min Operating Temperature32 degree Fahrenheit
Max Operating Temperature104 degree Fahrenheit
Humidity Range Operating10 - 80% (non-condensing)
Warranty Information
1 Year Parts & Labor Manufacture Warranty
