Product Overview
Samsung UDE-A Overview

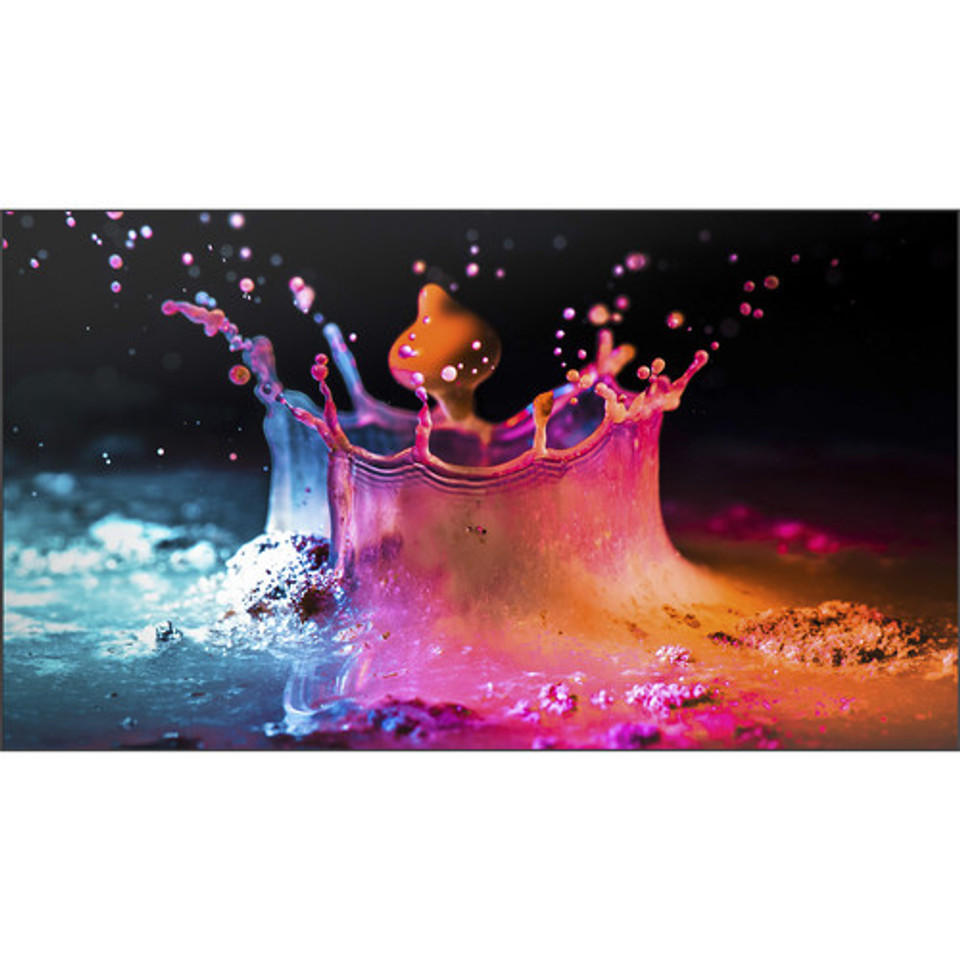

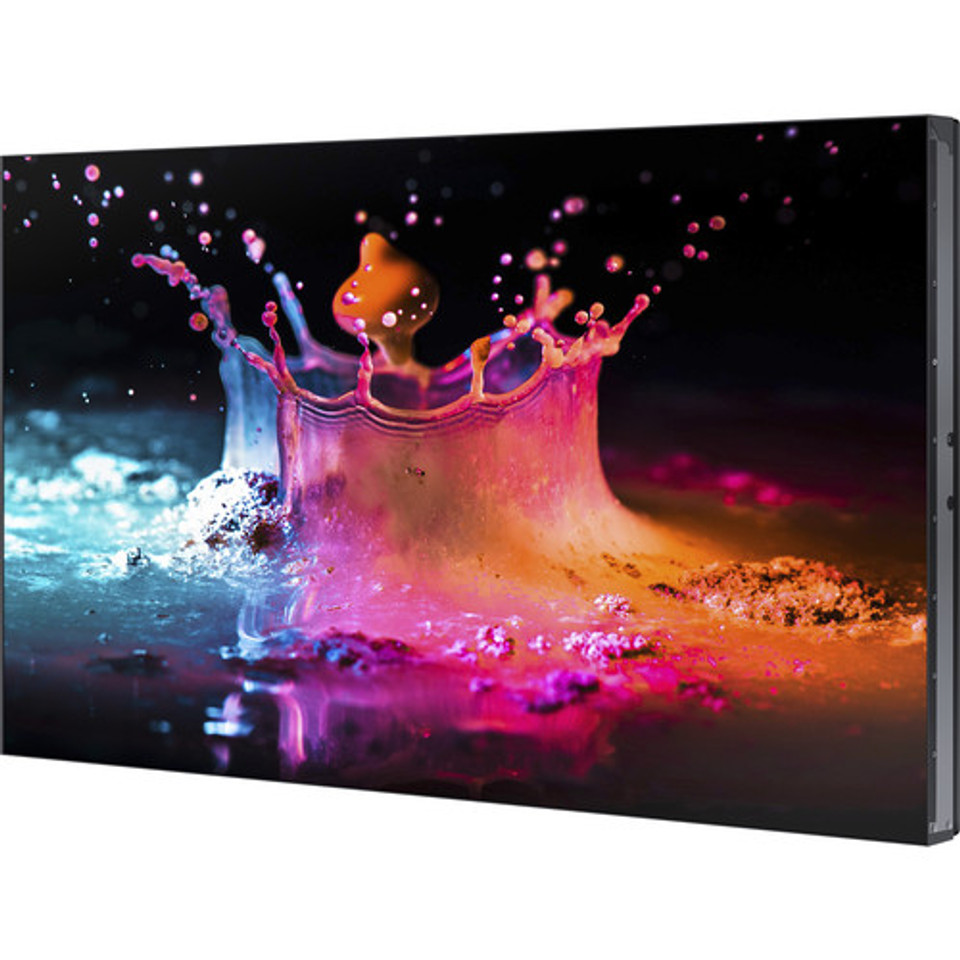

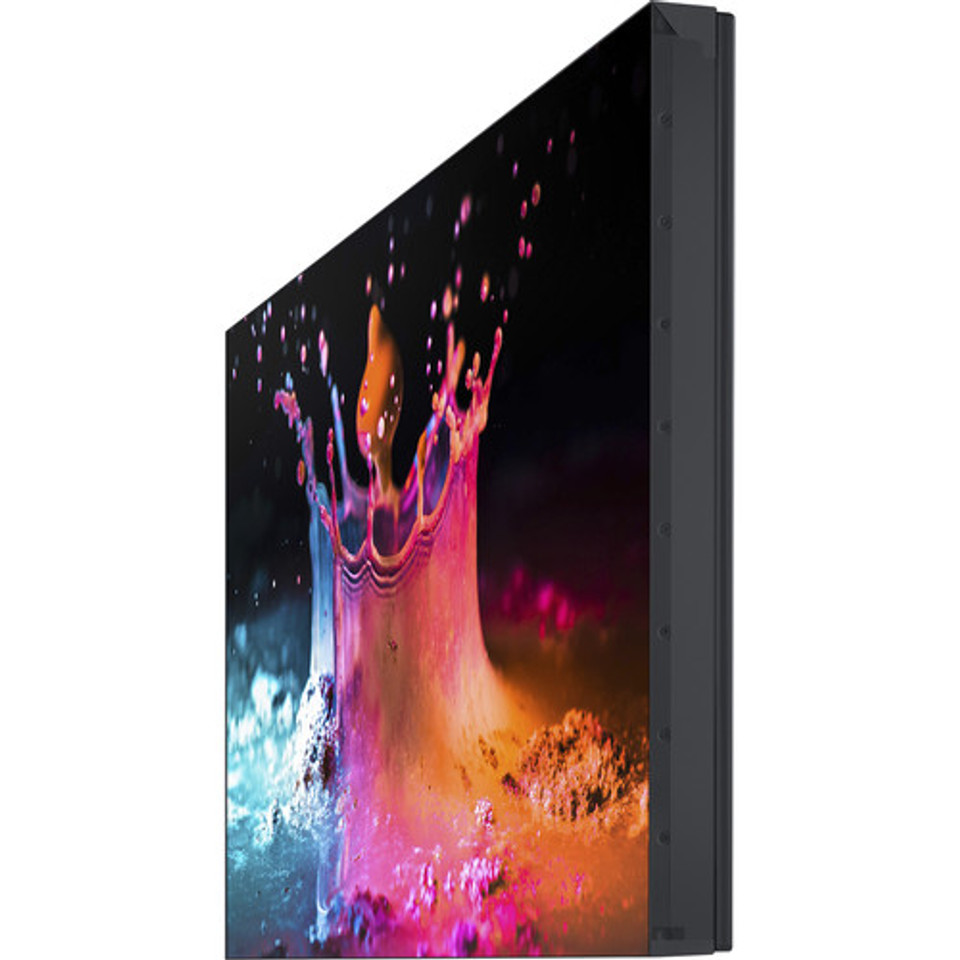

The 46" UDE-A Series Ultra-Thin Bezel LED-Backlit Commercial LCD Display from Samsung features a thin 3.5mm bezel-to-bezel width that helps create video walls that are virtually seamless. Its direct-lit LED technology delivers a vivid, full HD picture quality, while reducing power consumption and heat output. This display is ideal for setting up video wall in places like control rooms, transportation hubs, broadcast studios, or shopping centers.
- Allows you to create video walls with easy daisy-chain connectivity
- DisplayPort 1.2 Loop Out enables UHD resolution
- Up to 5x5 possible configuration
- Ultra-narrow bezel-to-bezel width of just 3.5mm
- Meticulously designed for brightness, color temperature, and gamma
- Delivers optimal uniformity and impressive images
- Direct-lit LED technology allows the display to achieve deeper blacks and a higher contrast ratio of 3500:1, also reducing power consumption and heat output
- Ability to deliver messages either vertically or horizontally, for greater flexibility in video wall configurations
- With innovative cooling technologies, this display is designed with a chassis delivering high-quality images with reliability, even during 24/7 continuous operation
Samsung UDE-A Specs
Display
| Screen Size (Diagonal) | 46" |
| Resolution | 1920 x 1080 |
| Brightness | 700 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Contrast Ratio | 3500:1 |
| Response Time | 8 ms |
| Backlighting Technology | Direct LED |

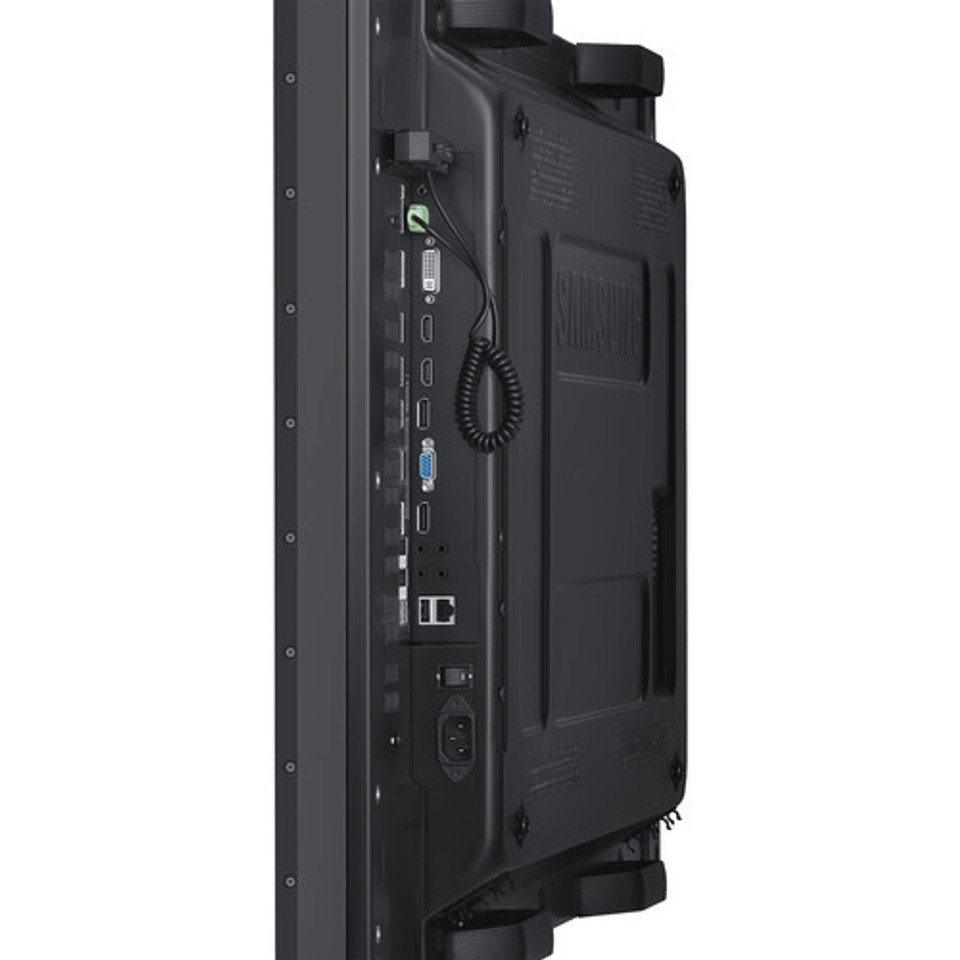

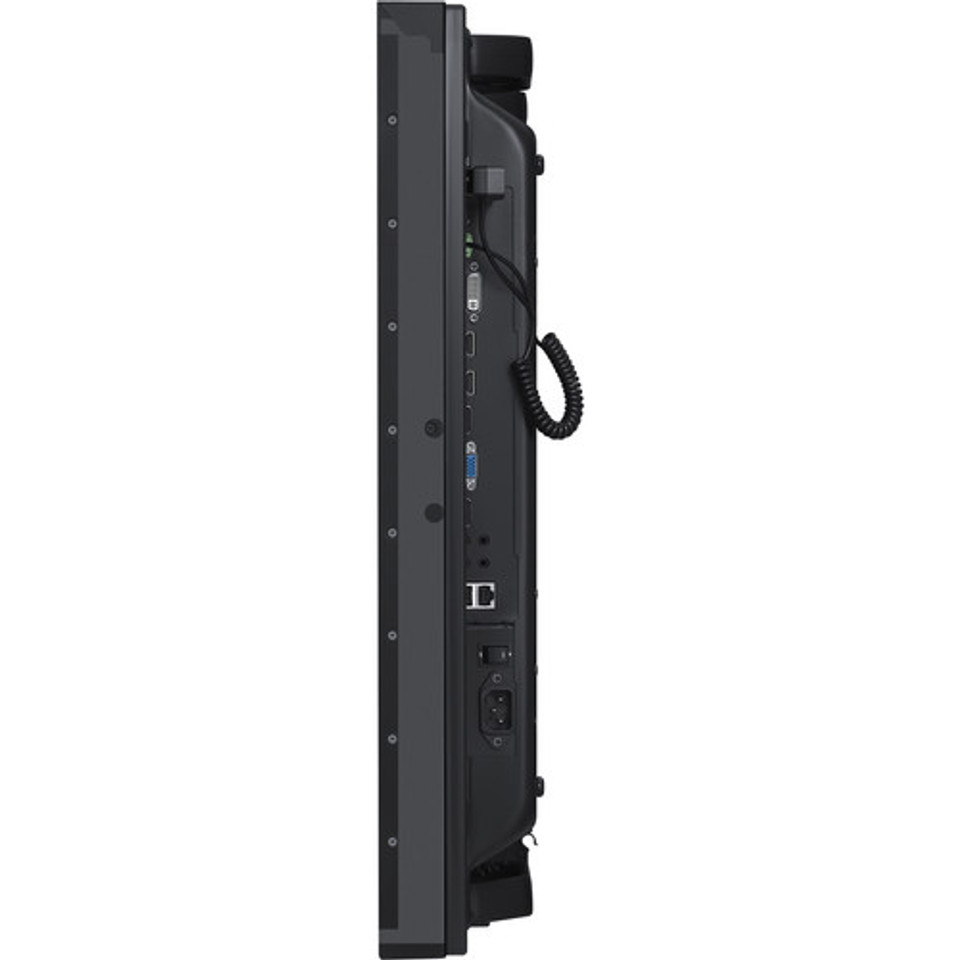

Connectivity
| Input Ports | 1 x 15-Pin VGA Video 1 x DVI-D Video 1 x DisplayPort 1.2 Audio, Video 2 x HDMI Audio, Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x DisplayPort 1.2 – Audio, Video 1 x 1/8" / 3.5 mm – Audio |
| USB Ports | 1 x USB (Version Unspecified) |
| Ethernet Ports | 1 |
Electrical
| Power Consumption | Maximum: 187.0 W Typical: 128.0 W Standby: 0.5 W |
Environmental
| Operating Temperature | 0 to 140°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
Physical

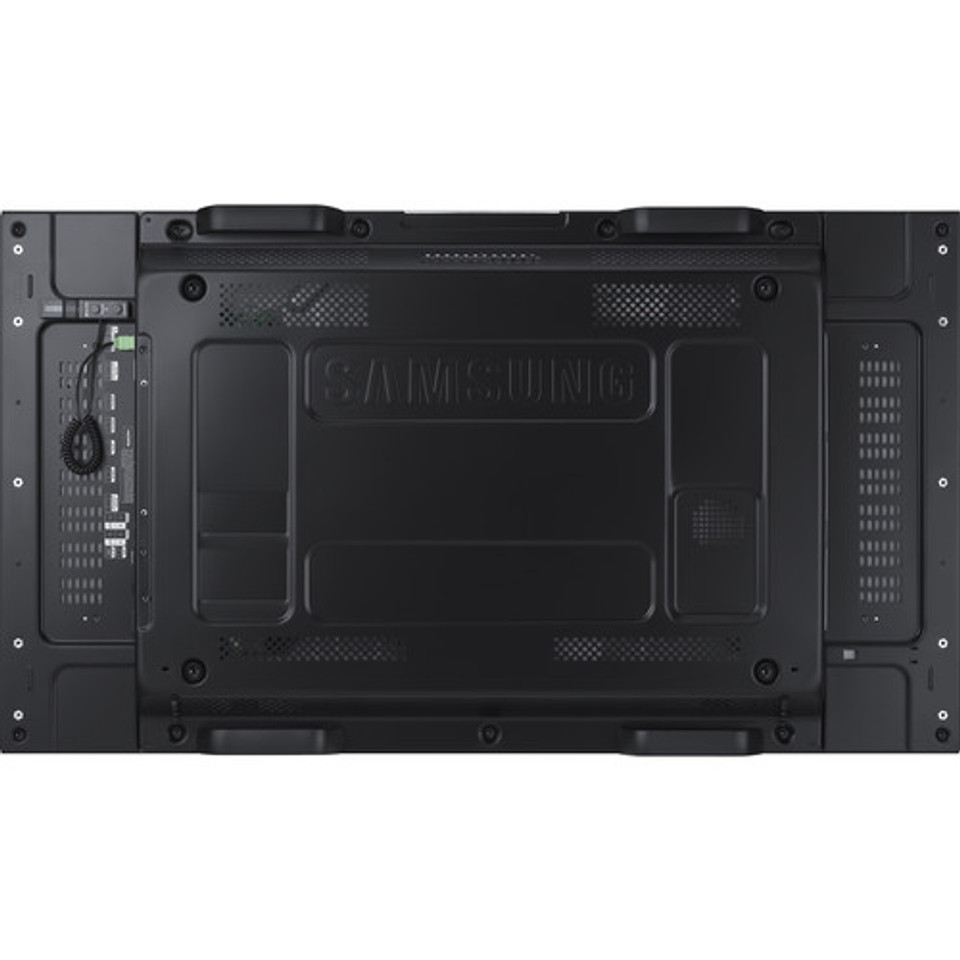

| Wall Mounting | 600 x 400 mm |
| IR Sensor | Yes, Detachable |
| Bezel Thickness | 1.2 mm (Bottom) 1.2 mm (Right) 2.3 mm (Top) 2.3 mm (Left) |
| Dimensions | 40.3 x 22.8 x 3.8" / 102.0 x 57.9 x 9.7 cm |
| Weight | 40 lb / 18 kg |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
