Product Overview
Samsung VH55R Overview

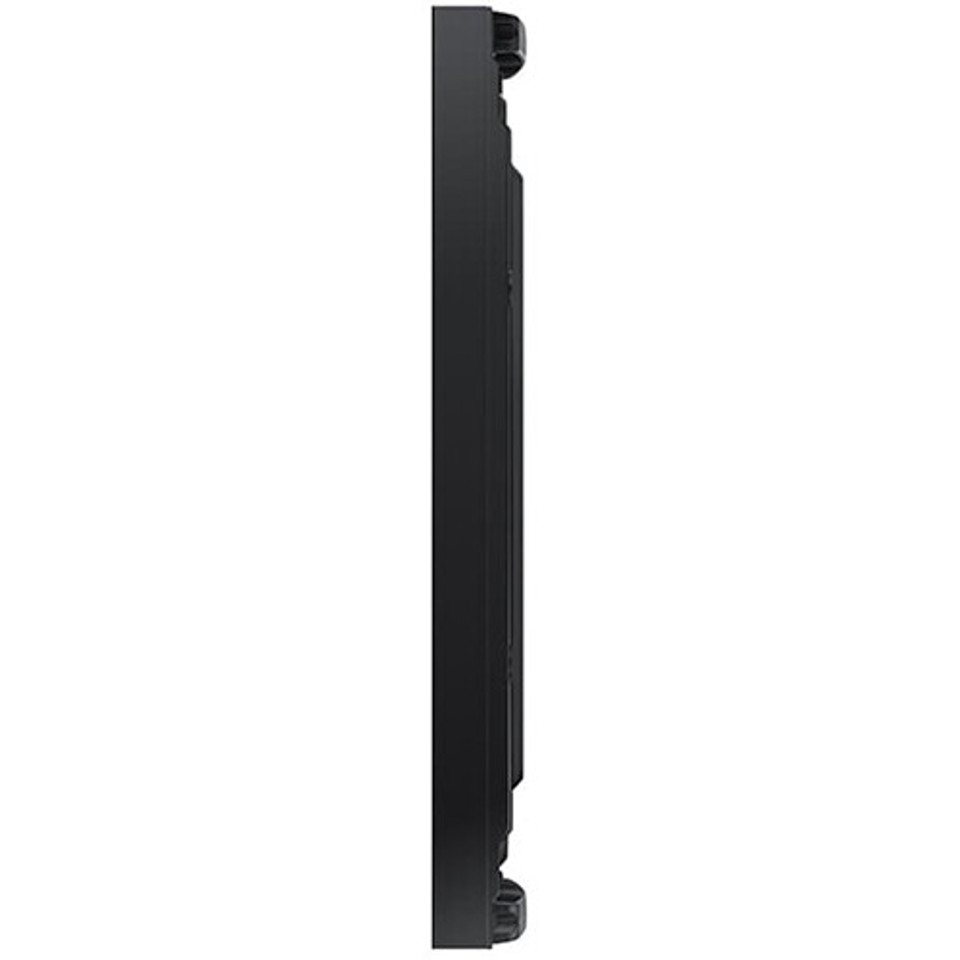

Advertise your product or business digitally with the Samsung VHR-R 55" Class Full HD Video Wall IPS LED Display. It outputs up to 700 cd/m² of brightness to help enhance visibility in bright environments. Its slim bezel design lets you mount multiple units together to create a vibrant video wall. The VHR-R has a DisplayPort 1.2, DVI-D, and two HDMI inputs for use with various types of source devices. As an added convenience, the display includes a remote control and a removable IR & ambient light sensor.
Key Features
- Full HD (1920 x 1080) Native Resolution
- 700 cd/m² Max Brightness
- DisplayPort, DVI-D, 2x HDMI Inputs
- DisplayPort Output for Loop-Through
- Digital Signage-Capable
- Rated for 24/7 Usage
- Remote Control Included
Nearly Invisible 0.44mm Even Bezel
A razor-thin 0.44mm even bezel enables content to be displayed as one immersive, seamless image in video walls, eliminating distortion.
Bright, Non-Glare Picture Quality 24/7
The display's 700 cd/m² brightness and non-glare panel provide high visibility 24/7, regardless of ambient light.
Image Enhancement Technology
Samsung's picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve. Black Equalizer mode lightens dark images so details are easier to see.
View Content from Any Angle
Wide viewing angles allow viewers to get clear and accurate information, regardless of video wall layout or location.
Modern, Slim Design
The VHR-R display features an ultra-slim depth of less than 2.75". It saves space and creates a clean, modern look for retail or other public spaces.
Accurate, Factory-Calibrated Color
Samsung's multi-step factory calibration process tunes video walls to uniform brightness and color throughout multiple displays.
Easy, Cost-Saving Mobile Calibration
Color Expert Pro Mobile lets even non-experts easily calibrate the white balance of a video wall (up to 5 x 5) simultaneously with a mobile camera.
Powerful UHD Viewing Experience
With daisy-chain design utilizing DisplayPort 1.2 and HDMI, the VHR-R display can display UHD content across multiple screens up to 5 x 5, without requiring an external graphics card or UHD splitters.
Additional Features
- 72% Color Gamut
- ACM Support (Advanced Color Management)
- Auto Source Switching & Recovery
- Temperature Sensor
- RS232C / RJ45 MDC
- Plug and Play (DDC2B)
- Video Wall (up to 15 x 15 via OSD, up to 10 x 10 via daisy-chaining)
- Image Rotation
- Button Lock
- DisplayPort 1.2 Digital Daisy Chain (supporting UHD resolution & HDCP)
- Smart F/W Update
- Clock Battery (up to 80 hours clock keeping)
Samsung VH55R Specs
Display
| Screen Size (Diagonal) | 55" |
| Resolution | 1920 x 1080 |
| Panel Type | IPS-Type LCD |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Brightness | 700 cd/m² (Maximum) |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| Response Time | 8 ms (GtG) |
| Backlighting Technology | LED |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI 2.0 – Audio, Video (Bottom) 1 x DisplayPort 1.2 Audio, Video 1 x DVI-D Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x DisplayPort 1.2 – Audio, Video 1 x 1/8" / 3.5 mm – Audio |
| USB Ports | 1 x USB (Version Unspecified) Type-A - Service (Bottom) |
| Ethernet Ports | Bottom: 1 |
| Control | IR via 1/8" / 3.5 mm Input IP via 1/8" / 3.5 mm Output RS-232C via 1/8" / 3.5 mm Input RS-232C via 1/8" / 3.5 mm Output |
| Digital Media Slot | None |
General
| TV Tuner | No |
| Display Orientation | Landscape, Portrait |
| HDCP Support | Yes, Version 2.2 |
| Ambient Light Sensor | Yes |
Surface
| Surface Treatment | Anti-Glare |
| Haze Level | 25% |
Audio
| Built-In Speakers | None |
Electrical
| Power Consumption | Maximum: 270.0 W Typical: 153.0 W Standby: < 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type | Internal |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
Physical
| Wall Mounting | 600 x 400 mm |
| IR Sensor | Yes, Detachable |
| Bezel Thickness | 0.44 mm (Bottom/Right/Top/Left) |
| Duty Cycle | 24 Hours / 7 Days |
| Dimensions | 47.7 x 26.8 x 2.8" / 1211.0 x 681.7 x 69.9 mm |
| Weight | 37 lb / 16.8 kg |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
