Product Overview
Sony VPL-FHZ120L Overview

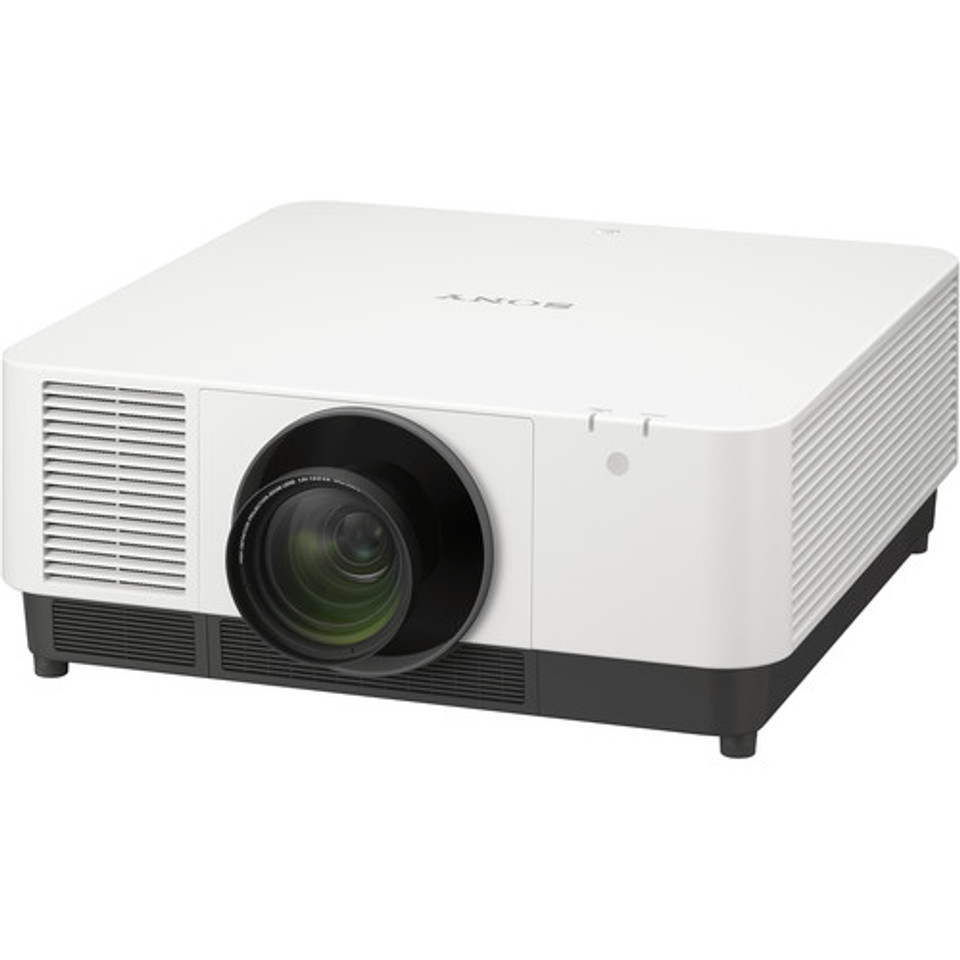

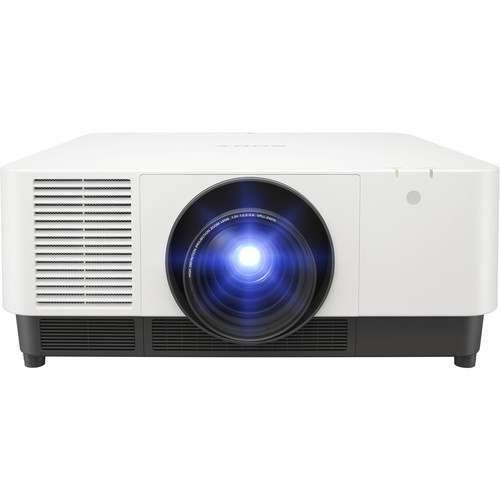

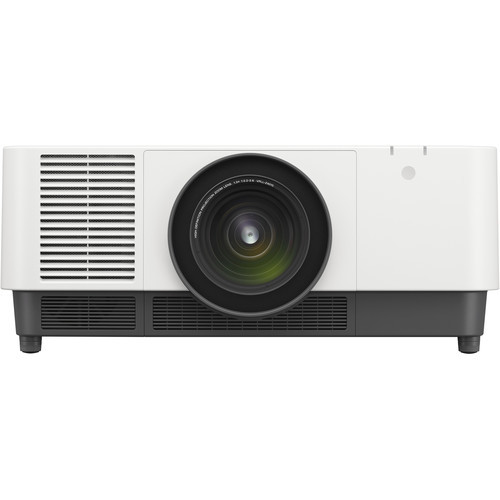

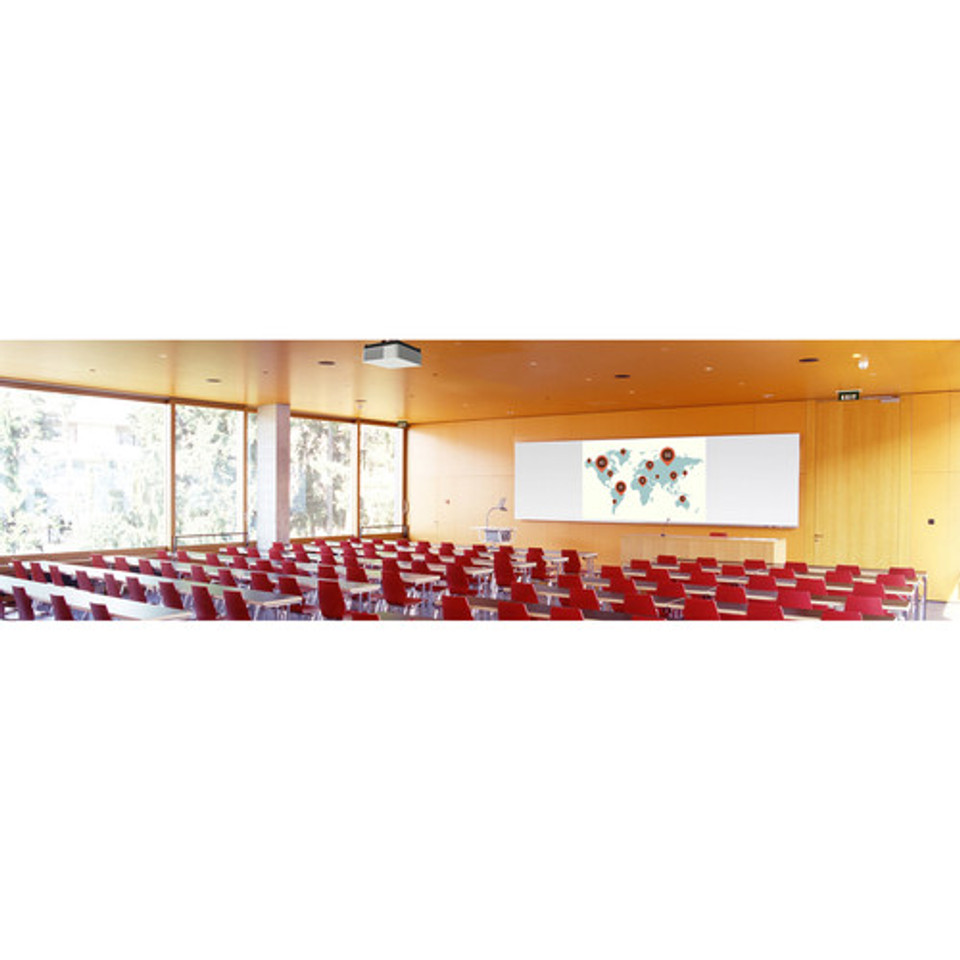

This white 12,000-Lumen WUXGA 3LCD Laser Projector from Sony is designed for use in large venues such as conference halls, lecture theaters, and galleries. Boasting a 12,000-lumen output, this projector is designed to overcome ambient light even in relatively bright rooms so that images remain sharp and crisp. The projector's 1920 x 1200 WUXGA native resolution enables you to display detailed video, pictures, and data. Various interchangeable lenses are available separately for a variety of throw ratio choices.
The VPL-FHZ120L features HDMI, DVI-D, and analog inputs, allowing for connectivity to a wide range of devices. The projector can be controlled via the included remote control, HDBaseT, or RS-232.
- 1" 3LCD panel and optical compensator
- Z-Phosphor laser light source
- Supports sRGB 100% mode for precise color reproduction
- Wide choice of separately available interchangeable lenses with lens shift adjustment for installation flexibility
- Auto calibration for color consistency over extended periods
- USB port
- Quick start-up maximizes presentation time
- Reality Creation technology analyzes the input signal down to the pixel level
Key Features
- Brightness of 12,000 Lumens
- WUXGA (1920 x 1200) Native Resolution
- 1" 3LCD Panel & Optical Compensator
- Various Optional Interchangeable Lenses
- Analog, HDMI & DVI-D Video Inputs
- HDBaseT & RS-232 Controllable
- Z-Phosphor Laser Light Source
- Flexible Mounting Options
- Quick Start-Up
- Remote Control Included
Sony VPL-FHZ120L Specs
Image Display
| Display System | 3-Chip 1" LCD |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | Maximum: WUXGA - 1920 x 1200 |
| Maximum Brightness | 12,000 Lumens |
| Aspect Ratio | Native: 16:10 |
| Scan | Horizontal: 15 to 92 kHz Vertical: 48 to 92 Hz |
Features
| Keystone Correction | Horizontal: ± 30° Vertical: ± 30° |
| Ceiling Mountable | Yes |
Input/Output Connectors
| Inputs/Outputs | 1 x Component (5BNC) Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x DVI-D Video Input 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x HDBaseT (RJ45) LAN Input 1 x Ethernet (RJ45) LAN Input/Output 1 x VGA (DE-15/DB-15) Video Output 1 x USB 2.0 (USB Type-A) Data Input/Output 1 x RS-232 (DE-9/DB-9) Control Input/Output |
| Number of Expansion Slots | 1 |
General
| Light Source | Laser Phosphor |
| Fan Noise | Full Brightness: 42 dB Medium Brightness: 39 dB |
| Security | Cable Lock Slot Security Bar |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4.4 to 10.8 A |
| Power Consumption | Full Brightness: 1076 W Standby Mode (Lamp Off): 0.5 W |
| Storage Humidity | 20 to 80% |
| Dimensions (W x H x D) | 21.4 x 8.1 x 22.2" / 544.0 x 205.0 x 564.0 mm without Protrusions |
| Weight | 59.52 lb / 27 kg |
Packaging Info
| Package Weight | 73.7 lb |
| Box Dimensions (LxWxH) | 29 x 29 x 15.5" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
