Product Overview
Designed by JBL, these Control 28-1 loudspeakers are two-way 8" indoor/outdoor monitors featuring weather-protected circuitry, natural and powerful representations of the frequency spectrum, black enclosures, and JBL's proprietary InvisiBall mounting hardware. This hardware allows you to install the speakers through a hidden access point behind its logo badge. As such, the Control 28-1 suitable for venues, health clubs, theme parks, cafes, or anywhere where foreground/background music—and paging—is a necessity.
These monitors are capable of handling 240W of programmatic material at 8 Ohms, and feature a built-in multi-tap transformer for operation on distributed speaker lines. With an SPL of 112 dB, you can blast these speakers pretty loudly as well, while their cone geometry ensures a pleasurable listening experience in both on- and off-axis situations. Additionally, their PEI diaphragms render a smooth high-frequency response. But sound is not the only consideration: Kapton voice coil formers, JBL's WeatherEdge rubberized extensions, and a durable cabinet construction provide protection against heat, rain, wind, or anything else the elements might throw at you in the coming years.
Also, while the Control 28-1 comes in a black finish, it doesn't have to stay that way: these speakers accept a variety of finishes and pigments to match any surrounding.
- 8" Woven-Fiberglass LF Drivers
- 1" PEI Diaphragm Tweeters
- 240W RMS at 8 Ohms
- Durable, Weatherized Enclosures
- InvisiBall Mounting Hardware
- Zinc-Plated Grilles
- Good for Off-Axis Listening
- 45 Hz to 20 kHz Frequency Response
Specifications
Key Specs
Active/Passive Passive
Number of Included Speakers 2
Speaker Configuration 2-Way
Power Handling
For 100 Hours:
90 W RMS
360 W Peak
For 2 Hours:
240 W Program
120 W RMS
480 W Peak

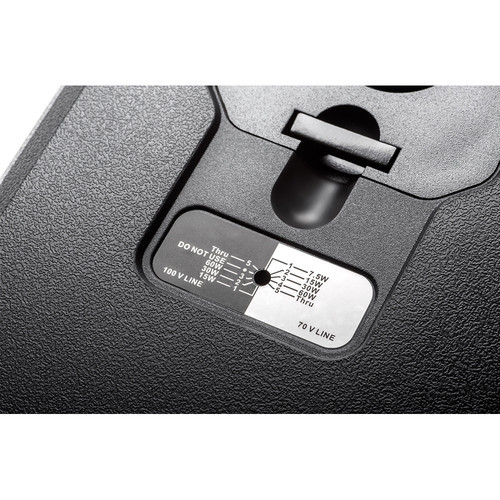

Constant Voltage / Transformer Taps
100 V:
60 / 30 / 15 W or 8 Ohms Bypass
70 V:
60 / 30 / 15 / 7.5 W or 8 Ohms Bypass
Impedance 8 Ohms (Thru Setting)
HF Driver 1" / 25 mm PEI Tweeter
LF Driver 8" / 20 cm Fiberglass Woofer
Color Black
Speaker
Active/Passive Passive
Number of Included Speakers 2
Speaker Configuration 2-Way
Power Handling
For 100 Hours:
90 W RMS
360 W Peak
For 2 Hours:
240 W Program
120 W RMS
480 W Peak
Constant Voltage / Transformer Taps
100 V:
60 / 30 / 15 W or 8 Ohms Bypass
70 V:
60 / 30 / 15 / 7.5 W or 8 Ohms Bypass
Impedance 8 Ohms (Thru Setting)
Drivers
HF Driver 1" / 25 mm PEI Tweeter
LF Driver 8" / 20 cm Fiberglass Woofer
Performance
Frequency Response
45 Hz to 20 kHz ±10 dB
62 Hz to 16 kHz ±3 dB
Sensitivity 91 dB
Coverage Angle 100° H x 100° V
Directivity
7.3 (Directivity/Q Factor)
8.3 dB (Directivity Index)
Crossover
Low-Pass:
12 dB/Octave
High-Pass:
6 dB/Octave
Recommended High-Pass Filter
15 / 7.5 W, Low-Z:
45 Hz, 24 dB/Octave
30 W:
55 Hz, 24 dB/Octave
60 W:
65 Hz, 24 dB/Octave
Maximum Input Voltage
27.5 V RMS
55 V Peak
Transformer Insertion Loss <0.94 dB
Connectivity
Inputs/Outputs Screw Terminal
Maximum Wire Gauge 12 AWG / 2.5 mm
EnvironmentalCertifications
RoHS, UL
Environmental Protection
Dust/Water-Resistant (IP44)
Physical
Color Black
Construction Material High-Impact Polystyrene, Metal Grille
Dimensions 15.2 x 11.1 x 8.6" / 386 x 282 x 219 mm
Weight 15 lb / 6.8 kg
Packaging Info
Package Weight 33.5 lb
Box Dimensions (LxWxH) 22 x 17 x 13.54"
