Product Overview

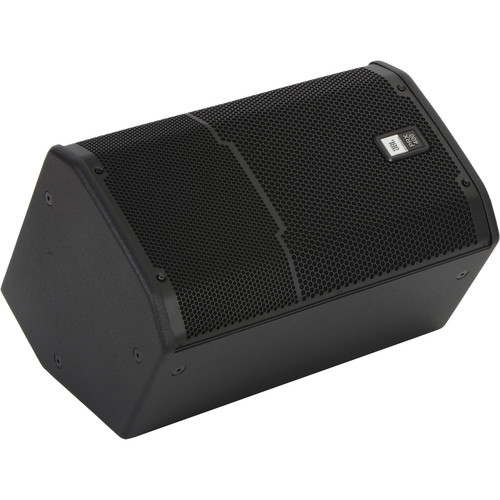

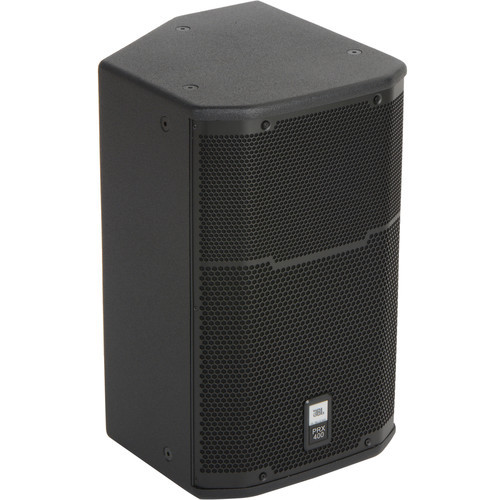

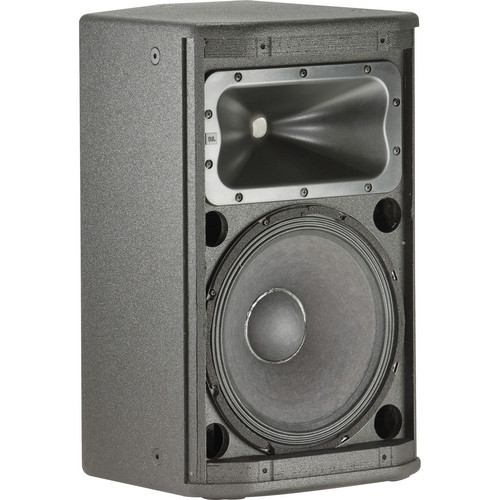

The black PRX412M Two-Way 12" Passive Speaker by JBL has an asymmetrical enclosure shape, allowing it to be used as an FOH main or a wedge monitor. The PRX412M houses a 12" woofer and a 1" polymer diaphragm compression driver for 300W of continuous power capacity. The 90 x 50° horn provides smooth, even coverage in both vertical and horizontal orientations.

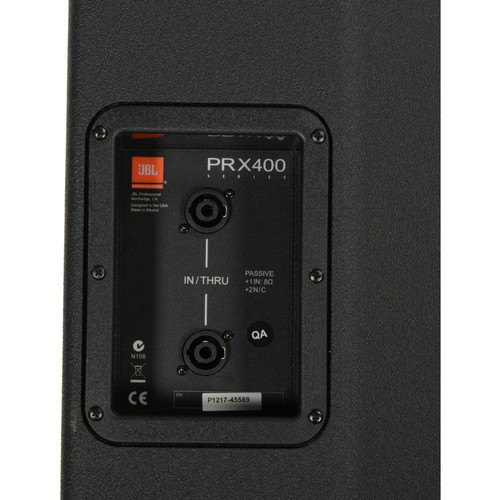

The PRX412M features combo connectors that accept both Speakon NL-2 and 1/4" TS connectors. A passive crossover network provides accurate sound reproduction. For use on a tripod or over a subwoofer, JBL's dual angle pole mount socket is integrated into the cabinet design. The socket can tilt down by 10°, allowing a mounted speaker to still obtain optimum audience coverage.
The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL's rugged DuraFlex finish. The distinctive 16-gauge steel grille is CNC-machined for precision. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a professional appearance.
Specifications
Key Specs
Configuration Passive 2-Way
Enclosure Type Loudspeaker/Floor Monitor
Total Power Capacity 1200 W
HF Driver 1 x 1" / 25 mm Polymer Compression Driver
MF Driver No
LF Driver 1x 12" / 305 mm
Frequency Range 50 Hz to 20 kHz -10 dB
Enclosure Type Loudspeaker/Floor Monitor
Total Power Capacity 1200 W
System Impedance 8 Ohms (Nominal)
Drivers
HF Driver 1 x 1" / 25 mm Polymer Compression Driver
MF Driver No
LF Driver 1x 12" / 305 mm
Performance
Frequency Range 50 Hz to 20 kHz -10 dB
Frequency Response 62 Hz to 19 kHz
Maximum SPL 126 dB (Peak)
Coverage Angle 90° H x 50° V
Speaker Sensitivity 95 dB SPL
Connectivity
Audio I/O 2x Combo speakON-1/4" Female Input
Signal Processing
Crossover 2000 Hz
Phase Adjustment Yes
Physical
Mounting 12 x M10 Bracket Point (Bottom),1 x 1.4" / 35 mm Pole Socket (Dual Angle)
Handles 1
Construction Material Plywood
Dimensions to 22.613.9 x 15.7" / to 353 x 399 mm
Weight 35 lb / 15.9 kg
Packaging Info
Package Weight 43.4 lb
Box Dimensions (LxWxH) 25 x 20.5 x 18.7"
