Product Overview

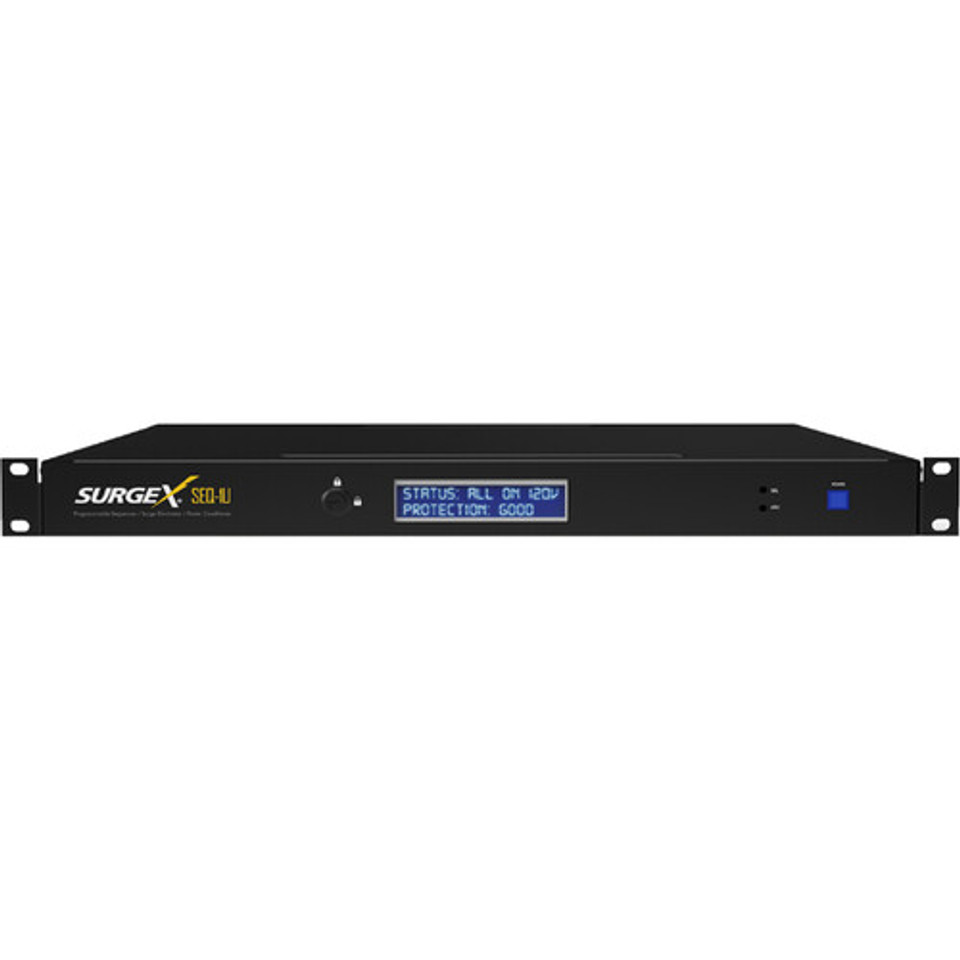

SURGEX SEQ1U Overview
The 1U, 120V/20A Programmable Sequencer Surge Eliminator from SurgeX allows sequencing of various types of electronic equipment that need to be powered up or down in order, rather than simultaneously. In AV systems, sequencing is often necessary for controlling the distribution of power to avoid equipment damage. This sequencer provides the sequencing parameters, conditioning, shutdown thresholds, and surge protection needed to safeguard audio, video, broadcast, and computer equipment. This unit has robust management features and is extremely easy to install, program, and use. It includes 2 always-on receptacles and 4 programmable banks. The SEQ features one virtual bank for controlling remote units, allowing for infinitely expanding distribution schemes. The SEQ also includes an LCD screen on the front panel that provides unit status, AC line voltage, and is also used in programming the unit. Settings are saved in nonvolatile memory. The SEQ can control other SurgeX products, or several SEQs can be interconnected to operate together. With many powerful features, the SEQ is extremely easy to install, program and use.
This surge elliminator is engineered with Advanced Series Mode surge elimination technology to provide top-of-the-line protection. Completely non-sacrificial and never needing reset, they provide reliable protection and eliminate surge energy up to 6,000V without producing harmful side effects such as ground contamination or common-mode disturbances. The SEQ Sequencer also features both common mode and normal mode impedance tolerant EMI/RFI filtering, SurgeX ICE (Inrush current elimination), and CouVS (Catastrophic over/under Voltage shutdown) for a complete power conditioning solution.
- Advanced Series Mode surge protection
- Three sequenced banks of 4 receptacles; two always-on receptacles
- Setup stored in nonvolatile memory
- Advanced Impedance Tolerant EMI/RFI filtering
- Over/under voltage shutdown
- SurgeX ICE inrush current elimination technology
- Can be used to control other SurgeX products or daisy-chained with other SEQ sequencers
- LCD screen
- Magnetic shielding steel enclosure
- 9' (2.75m) grounded 3-wire #12 line cord
- Provides continual display of AC line voltage
- Accommodates any type of control input
- DC voltage or contact closure feedback to Crestron, AMX, or similar control devices
- Output to drive up to four status LEDs
- Advanced Series Mode surge protection
- COUVS catastrophic over/under-voltage shutdown
- Thermal circuit breaker overload protection
- Made in USA
SURGEX SEQ1USpecs
Load Rating | |
Certifications & Approvals | |
Safety | |
Control Input | |
Current | |
Output | |
Resistance | |
Delay | |
Temperature Range | |
Humidity Range | |
Listings | |
Dimensions | |
Weight |
