Product Overview
SURGEX SX-DS-154 Overview

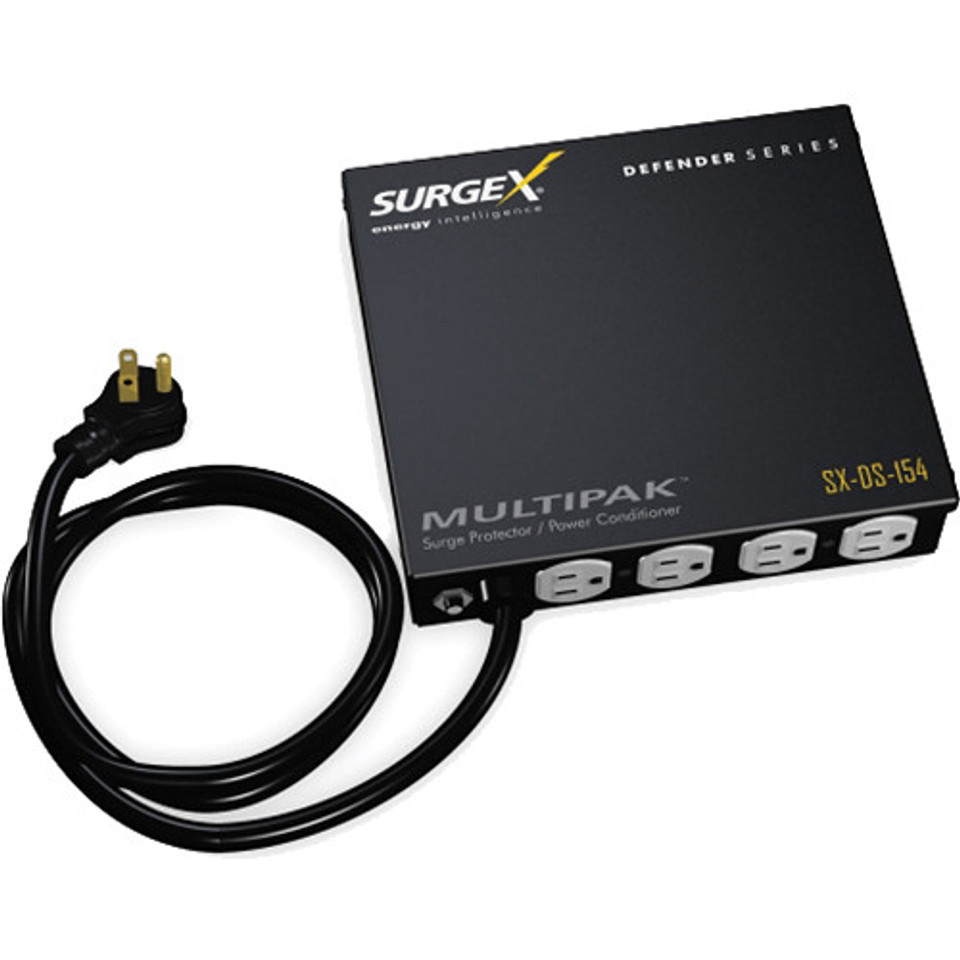

The SX-DS-154 Defender Series MultiPak from SURGEX is a power protector and conditioner with realtime data acquisition and storage. It features one NEMA 5-15P input, and 4 NEMA 5-15R outputs. This unit is designed to protect digital panel displays from power anomalies that can cause downtime, disruption, equipment shutdown, and loss of revenue. Its multi-stage technology is designed to ensure an increased level of protection from damaging surges, spikes, over/under voltage, EMI/RFI noise, and wiring faults. The compact design easily integrates with wall/ceiling mounting systems to conceal it from view.
- Protects digital panel displays from power anomalies that can cause downtime, disruption, equipment shutdown, and loss of revenue
- Compact design easily integrates with wall/ceiling mounting systems to conceal it from view
- Normal and Common Mode EMI Noise Filter
- Zero-voltage turn-on
- Zero-current turn-off
- Inrush current elimination (ICE)
- Wiring fault detection
- Catastrophic over/undervoltage shutdown (CouVS) with selectable thresholds
- Under/overvoltage event recorder (up to 999 events)
- Power outage event recorder (up to 999 events)
- Surge event recorder (up to 999 events)
- Records surges in all three modes: line-neutral, line-ground, neutral-ground
- Event timestamp recorder (up to 60 events)
- Records time between events
- Additional features available when connected to a PC:
- Import data stored in the MultiPak device memory
- Import data from a stored data file
- Export data to a data file
- Export data to a report in PDF format
- Set over and under-voltage shutdown thresholds
- Clear device memory
- Real-time AC voltmeter
- Enhanced Logging Mode
SURGEX SX-DS-154Specs
| Load Rating |
15 A @ 120 V
|
| Protection Rating |
330 V
|
| EMI/RFI Filter |
Normal Mode: > 30 dB, 80 kHz - 50 MHz, (50 Ω load)
Common Mode: > 30 dB, 70 kHz - 50 MHz, (50 Ω load) |
| Over Voltage Correction |
Adjustable from 135 V to 160 V. Restores at 130 V
|
| Under Voltage Correction |
Adjustable from 80 V to 95 V, or disabled. Restores at 105 V
|
| Connectors |
1 x NEMA 5-15P, input
4 NEMA 5-15R, output |
| Temperature Range |
41 to 95°F (5 to 35°C)
|
| Humidity Range |
5 to 95% RH, non-condensing
|
| Agency Listing |
ETL and cETL Certified to UL 1449 (pending)
|
| FCC Compliance |
Part 15 Class B
|
| Dimensions |
8.15 x 7.27 x 1.79" (20.71 x 18.47 x 4.55 cm)
|
| Weight |
4.1 lb (1.9 kg)
|
Packaging Info
| Package Weight |
5.51 lb
|
| Box Dimensions (LxWxH) |
16.1 x 11.2 x 6.4"
|
