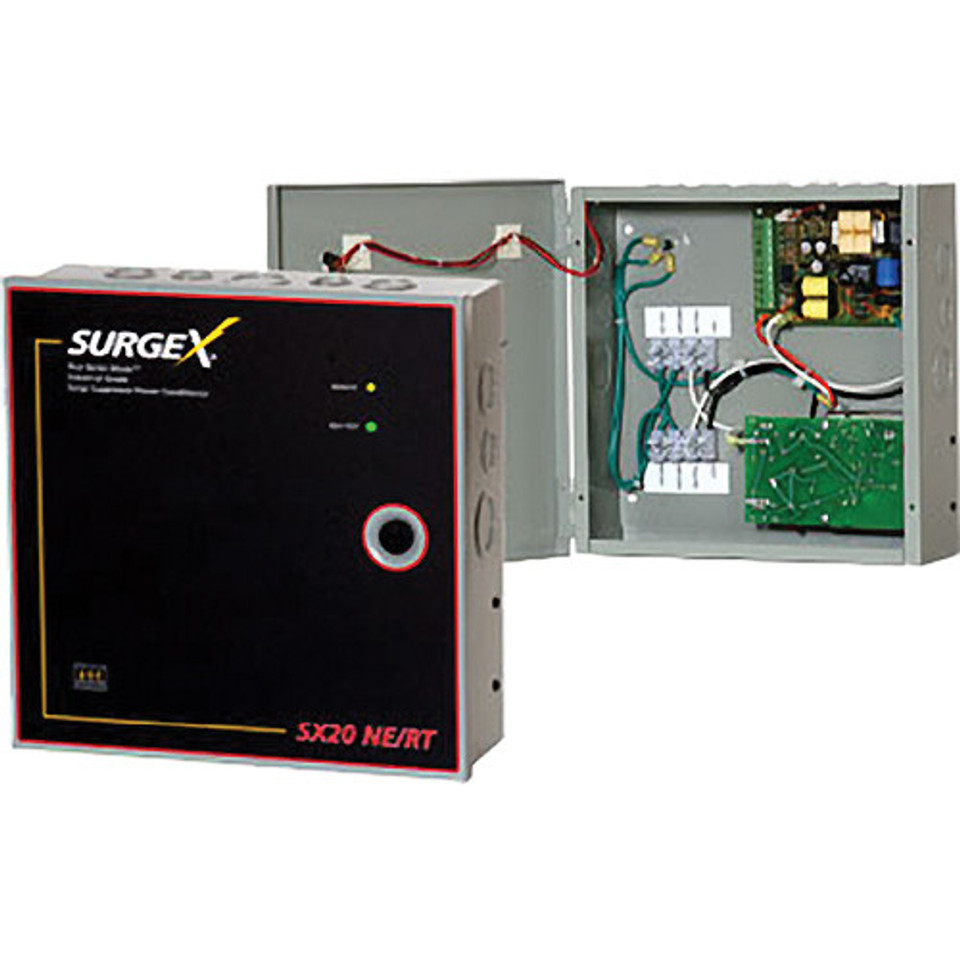

SURGEX SX20 NE/RT Surge Eliminator & Power Conditioner

SURGEX

(No reviews yet) Write a Review
$898.98
SKU:
SX-20NE-RT
UPC:
858253005675
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Product Overview

SURGEX SX20NERT Overview

The SurgeX SX20 NE/RT Surge Eliminator & Power Conditioner has remote control capability for use in AC power distribution systems and can be interfaced with a sequential controller such as the SurgeX SEQ. The unit can be controlled with an applied voltage between 5 and 30VDC or a contact closure switch connected to the Phoenix connector terminal block. The connector can also be used to cascade multiple units or provide status to a central controller.

The SX20 NE/RT unit provides surge protection and power conditioning for audio, video, broadcast, and computer equipment. The unit is 20A load capable, is encased in a 12 x 12 x 4" NEMA-rated enclosure, and meets the code for use at service entrances & sub-panels and in-ceiling plenums.

The unit features both common and normal mode Impedance Tolerant EMI/RFI filtering as well as SurgeX ICE (Inrush Current Elimination) for a comprehensive power conditioning solution. The SurgeX Advanced Series Mode technology is completely non-sacrificial. The zero let-through technology protects the connected devices from all surges up to 6,000V (unlimited surge current) without producing harmful side effects such as ground contamination or common-mode disturbances.
  • Steel enclosure with magnetic shielding
  • Advanced Series Mode surge protection
  • Advanced Impedance Tolerant EMI/RFI filtering
  • SurgeX ICE technology
  • Remote turn-on
  • Self-test circuit with visual indicator
  • c-ETL-US listed
  • Made in U.S.A.

SURGEX SX20NERT Specs

Load Rating
20 A @ 120 V
Power Requirement
15 W @ no load
Certifications & Approvals
UL 1449 Adjunct Classification Test Results: 1,000 surges, 6,000 V, 3,000 A, B3 pulse and measured suppressed voltage: 170 V, no failures
Federal Guidelines: Grade A, Class 1, Mode 1 (CID A-A-55818)
EMI/RFI Filter, Normal Mode (50 Ω load): 40 dB at 100 kHz, 50 dB at 300 kHz, 50 dB at 3 MHz, 50 dB at 30 MHz
EMI/RFI Filter, Common Mode (50 Ω load): 18 dB at 300 kHz, 30 dB at 1 MHz, 50 dB at 5 MHz, 50 dB at 20 MHz
Safety
Surge Let-Through Voltage (6,000 V surge): 0 V
Maximum Applied Surge Voltage: 6,000 V
Maximum Applied Surge Current: Unlimited, due to current limiting
Maximum Applied Surge Energy: Unlimited, due to current limiting
Endurance (C62.41-1991 Category B3 pulses): 1 kV > 500,000, 3 kV > 10,000, 6 kV > 1000
Under-Voltage Shutdown: 90 V (resume at 100 V)
Over-Voltage Shutdown: 145 V (resume at 135 V)
Maximum Load Inrush Current During Power-Up: 1,000 Joules
Remote
Remote Turn-on Applied Voltage Range: 5 to 30 VDC
Remote Turn-on Current Draw: 3 mA @ contact closure, 1 mA @ 5 VDC applied voltage, 2.5 mA @ 12 VDC applied voltage, 5 mA @ 24 VDC applied voltage
Relay Contact Rating
Auxiliary: 30 V at 1 A
LED Output
12 VDC, maximum 20 mA (resistor required)
Temperature Range
41 to 95°F (5 to 35°C)
Humidity Range
5 to 95% R.H., non-condensing
Listings
Agency Listings: ETL and cETL (UL 1449, 2nd edition, CSA C22.2 No.8-M1986, R2000)
Dimensions
12.0 x 12.0 x 4.0" (30.5 x 30.5 x 10.2 cm)
Weight
12.00 lb (5.45 kg)
