Product Overview

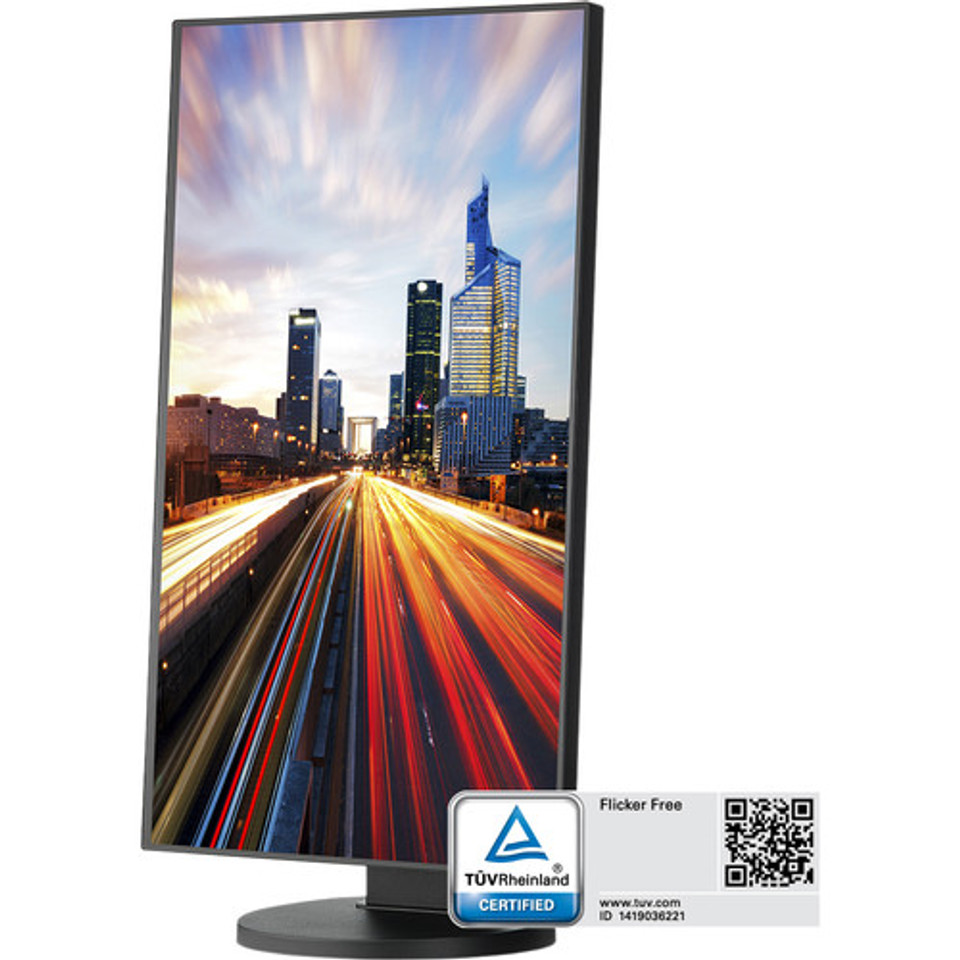

NEC EX241UN Overview
The narrow bezels found on the EX241UN-BK 23.8" 16:9 IPS Monitor from NEC offer an enhanced viewing experience, while the 1920 x 1080 Full HD resolution provides a crisp, clear picture quality. In addition to the enhanced resolution, this NEC monitor features a 16:9 widescreen aspect ratio, a 1000:1 contrast ratio, and a 6 ms response time for a more dynamic picture with reduced ghosting.
Setup and configuration of the EX241UN-BK is simple as it comes equipped with DisplayPort, HDMI, DVI-D, and VGA inputs making it easy to connect this monitor to a variety of computer configurations. Once set up, this NEC display comes equipped with a 5-way control button with on screen display settings to adjust various screen settings. This display is also designed for reduced power consumption thanks to the built-in LED backlight technology, and with ECO mode, the display's brightness can be adjusted to save power and energy costs.
Additional Features
- ControlSync
- Integrated Speakers
- Built-In USB 3.0 Hub
- Auto Brightness
- Carbon Footprint Meter
- Resettable Cost Meter
- Carrying Handle
- Ambix
- XtraView
- No Touch Auto Adjust
- Plug-and-Play (VESA DDC2B)
- AccuColor Color Control
- ISO 9241-307 Class I
- DICOM SIM for IPS models
NEC EX241UN Specs
Size | 23.8" |
Panel Type | IPS-Type LCD |
Touchscreen | No |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Pixels Per Inch (ppi) | 93 ppi |
Finish | Matte |
Maximum Brightness | 250 cd/m2 |
Contrast Ratio | 1000:1 |
Adaptive-Sync Technology | None |
Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
Color Gamut | 72% NTSC 100% sRGB |
Response Time | 6 ms |
Viewing Angle | Horizontal: 178° Vertical: 178° |
Dot Pitch | 0.2 x 0.2 mm |
Inputs/Outputs | 3 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) Output 1 x DVI-D 1 x DisplayPort Input 1 x DisplayPort 1.2 Output 1 x HDMI 1 x VGA |
Power Consumption | 0.3 W (Standby) 19 W (Typical) |
Operating Temperature | 41 to 95°F / 5 to 35°C |
Storage Temperature | 14 to 140°F / -10 to 60°C |
Operating Humidity | 20 to 80% |
Storage Humidity | 10 to 85% |
Operating Altitude | 0 to 16,404' / 0 to 5000 m |
Storage Altitude | 0 to 40,000' / 0 to 12,192 m |
Certifications | RoHS, as per Manufacturer |
Height Adjustment | 3.9" / 9.9 cm |
Rotation Adjustment | Yes |
Swivel Adjustment | Yes |
Tilt Adjustment | Yes |
Mounting-Hole Pattern | 100 x 100 mm |
Dimensions (W x H x D) | 21.2 x 14.6 x 8.0" / 53.8 x 37.0 x 20.4 mm (with Stand) 21.2 x 12.2 x 1.7" / 53.8 x 31.0 x 4.4 mm (without Stand) |
Weight | 12.3 lb / 5.6 kg (with Stand) 8.2 lb / 3.7 kg (without Stand) |
Package Weight | 16.5 lb |
Box Dimensions (LxWxH) | 26 x 16 x 7" |
