Product Overview

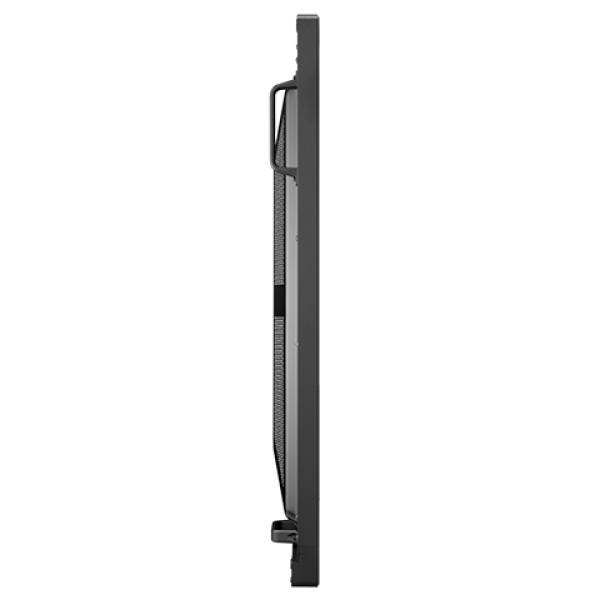

With industry leading experience in superior design and customer focus, the 65′′ NEC V654Q allows for clear, detailed imagery for unobtrusive digital signage. New contemporary and slim mechanical design with focused aesthetics allows for the smooth and stylistic integration into any type of environment while the full metal chassis coupled with real-time temperature sensors and integrated cooling fans maintain the professional quality necessary for commercial environments. With a wide range of the latest connectivity interfaces including HDMI 2.0 x3 and DisplayPort 1.2 x2/daisy chain option, these displays offer the future-proofing necessary for the investment. These displays also include expandability options such as the Open Pluggable Specification (OPS) and Raspberry Pi Compute Module slots for source integration directly into the display. The V654Q series boasts a 500 cd/m² brightness along with a new anti-glare surface that allows for efficient readability when ambient light is present and is ideal for 24/7 signage in Retail environments as well as when used for presentation purposes in Corporate or Educational institutions.
General | |
Product Type | LED-backlit LCD flat panel display |
Energy Class | Class G |
Power Consumption Operational | 230 Watt |
Power Consumption (On mode) | 180 W |
Power Consumption SDR (On mode) | 180 kWh/1000h |
Diagonal Class | 65" |
Commercial Use | Yes - digital signage |
Series | V Series |
TV Tuner Presence | No |
Sensors | Ambient light sensor (ALS), temperature sensor, NFC sensor |
Video Interface | HDMI |
HDMI Ports Qty | 3 ports |
PC Interface | DisplayPort |
Modes | Portrait mode, landscape mode, Multi Picture Mode |
Picture Enhancements | Noise Reduction, Adaptive Contrast |
Cooling System | Fan |
Dimensions | Without stand |
Width | 57.4 in |
Depth | 3.1 in |
Height | 32.7 in |
Weight | 89.95 lbs |
Display | |
LCD Display Technology | VA |
Resolution | 3840 x 2160 |
Display Format | 4K UHD (2160p) |
Image Aspect Ratio | 16:9 |
Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
LCD Backlight Technology | LED backlight - local dimming |
Coating | Anti-glare, 44% haze |
Image Contrast Ratio | 4000:1 |
Brightness | 500 cd/m² |
Viewing Angle | 178° |
Viewing Angle (Vertical) | 178° |
Response Time | 8 ms |
Operation Hours / Days | 24 / 7 |
Additional Features | NaViSet, TileMatrix (10 x 10), Aspect ratio control (ARC), Crestron RoomView, Open Pluggable Specification slot, Carbon Footprint Meter, Input Labeling, AMX Beacon Compatible, 24/7 Scheduler, Daisy Chain, screen saver, PJLink, Raspberry Pi Compute Module Compatible, Image Flip, SpectraView Engine Color Control, powered USB port |
Video Wall | |
Max Number of Screens | 100 |
Stands & Mounts | |
Stand | Optional |
Flat Panel Mount Interface | 400 x 400 mm, 600 x 400 mm |
VESA Compatibility | Yes |
Video Features | |
Input Video Formats | 1080i, 1080p, 480/60p, 720/60p, 720/50p, 576/50p, 480/60i, 576/50i, 2160/24p, 2160/25p, 2160/30p, 2160/60p |
Supported Computer Resolutions | 1280 x 720, 1920 x 1080, 3840 x 2160, 4096 x 2160 |
Media Player | |
USB Port | Yes |
USB Ports Qty | 1 |
Audio System | |
Speaker System | 2 speakers |
Output Power / Total | 20 Watt |
Speakers | 2 x main channel speaker - 10 Watt |
Connections | |
Connector Type | 3 x HDMI 2 x DisplayPort input DisplayPort output Audio input Serial USB USB downstream 3 x USB upstream 2 x LAN Audio output 2 x speakers output |
Miscellaneous | |
Cables Included | HDMI cable DisplayPort cable |
Compliant Standards | DisplayPort 1.2, HDCP 2.2, HDCP 1.3, HDCP 1.4 |
Power | |
Power Device | Power supply |
Input Voltage | AC 120/230 V (50/60 Hz) |
Power Consumption Stand by | 0.5 Watt |
Manufacturer Warranty | |
Service & Support | Limited warranty - 3 years |
Dimensions & Weight (Shipping) | |
Width (Shipping) | 68.3 in |
Depth (Shipping) | 11 in |
Height (Shipping) | 40.7 in |
Environmental Parameters | |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 20 - 80% |
