Product Overview

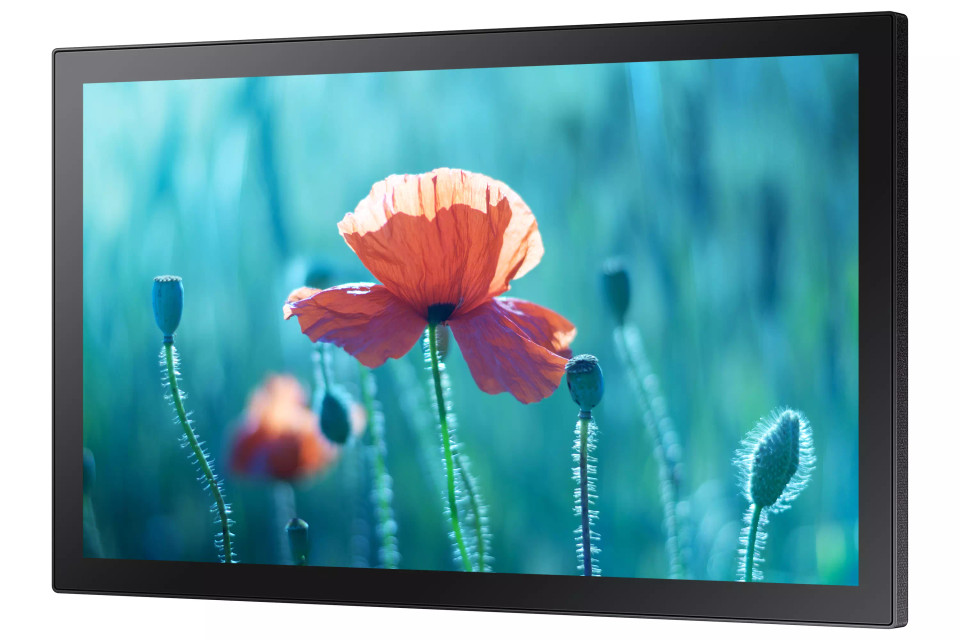

Samsung QBR-TM QB13R-TM. Product design: Interactive flat panel. Display diagonal: 33 cm (13"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 4.0. Product colour: Black
Specifications
Display
Display diagonal 33 cm (13")
Display technology LED
Panel type ADS
Display resolution 1920 x 1080 pixels
Display brightness 500 cd/m²
HD type Full HD
Touchscreen Yes
Multi-touch Yes
Response time 30 ms
Contrast ratio (typical) 600:1
Contrast ratio (dynamic) 10000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Pixel pitch 0.153 x 0.153 mm
Horizontal scan range 30 - 81 kHz
Vertical scan range 48 - 75 Hz
Haze rate 25%
Pixel frequency (max) 594 MHz
Colour gamut 45%

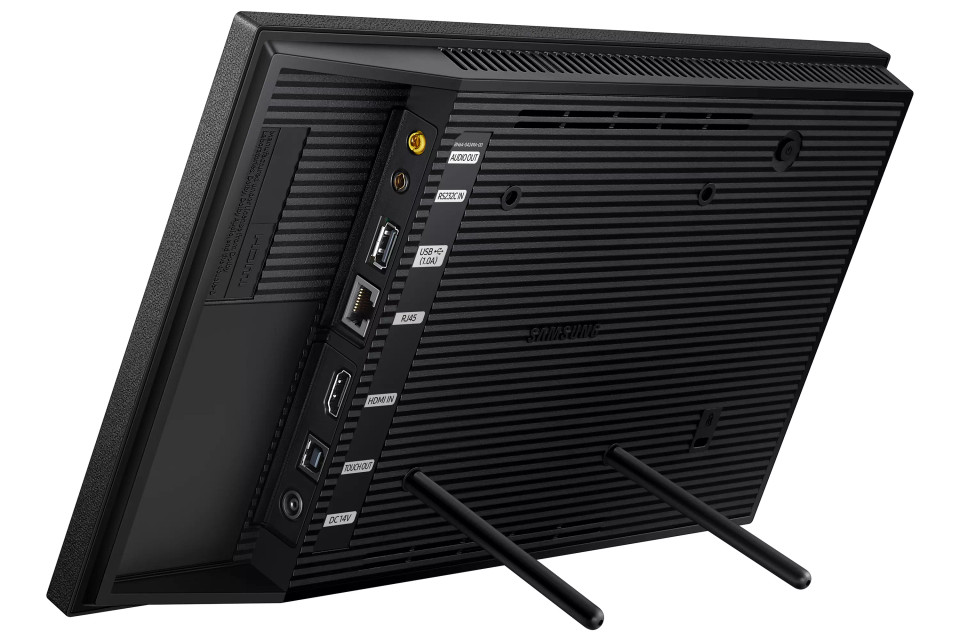

Ports & interfaces
HDMI ports quantity 1
HDMI version 1.4
HDMI input ports quantity 1
USB port Yes
USB ports quantity 1
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Wi-Fi Yes
RS-232 interface Yes
DC-in jack Yes
Design
Product design Interactive flat panel
Product colour Black
Placement supported Indoor
Screen shape Flat
VESA mounting Yes
Panel mounting interface 100 x 100 mm
Bezel width (bottom) 1.31 cm
Bezel width (side) 1.31 cm
Bezel width (top) 1.31 cm
Bezel colour Charcoal Black
Performance
Purpose Universal
Operating hours (hours/days) 16/7
HDCP Yes
HDCP version 2.2
Power
Power consumption (typical) 27.5 W
Power consumption (sleep) 0.5 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Computer system
Computer system Yes
Computer system type System on Chip (SoC)
Built-in processor Yes
Operating system installed Tizen 4.0
Weight & dimensions
Display width 322 mm
Display depth 29.8 mm
Display height 193.5 mm
Display weight 1.1 kg
Packaging data
Package width 376 mm
Package depth 248 mm
Package height 132 mm
Package weight 2 kg
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 80%
Certificates
Certification Class B 60950-1, 62368-160950-1, 62368-1
Technical details
Audio out (mini jack) 1
Other features
Flash memory 8000 MB
RS-232 input ports 1
RJ-45 input ports 1
