Product Overview
Time to upscale your display
Samsung’s new QBR series displays cut through the clutter to deliver best-in-class UHD resolution as well as intelligent UHD upscaling and rich flawless colors with Dynamic Crystal Color all in a slim design.

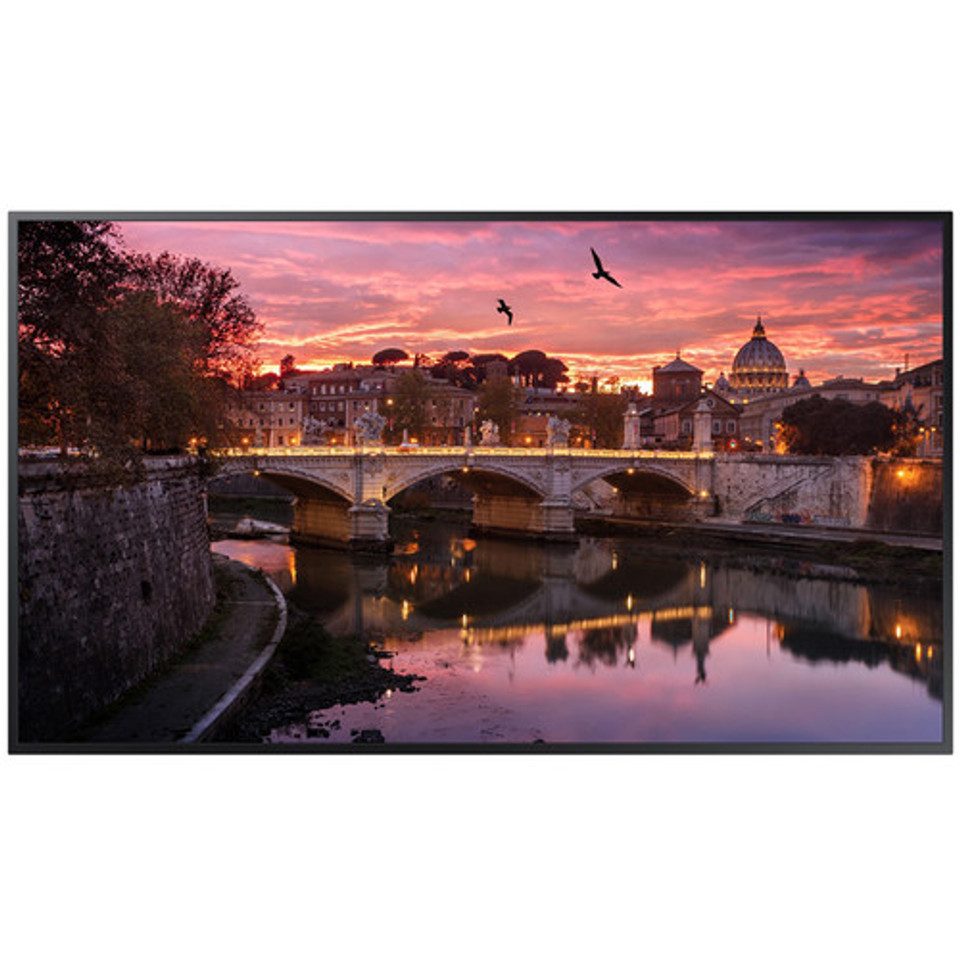

Incredible 4K picture quality
Samsung’s new QBR series provides ultra high-definition 4K resolution, creating lifelike images with sharper picture quality than ever before.
Key Features
- 4K UHD (3840 x 2160) Native Resolution
- HDR10 & HDR10+ Compatibility
- 8 ms Response Time
- 350 cd/m² Brightness
- 4000:1 Typical Contrast Ratio
- Built-In Wi-Fi, Ethernet, and Bluetooth
- DVI-D, 2 x HDMI, 2 x USB Inputs
- Dual 10W Speakers
- Digital Signage-Capable
- Supports up to 1 Billion Colors
Crystal Processor 4K
Intelligent UHD upscaling technology, made possibly by Samsung’s Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery.
Dynamic Crystal Display
The QBR series features Dynamic Crystal Display, using 10 bit processing for flawless color expression, allowing viewers to enjoy a wider spectrum of colors up to one billion shades. HDR+ compatibility converts standard definition content to HDR quality for sharper contrast and more vivid colors.
Slim and symmetrical design
The QBR series features an all-new symmetric design simplifying wall mounting and ensuring installation is seamless. The flat back and slim depth will ensure a display that will stand the test of time.
Clean cable management
With QBR's new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping expeience for customers, even when the back of the display is visible.
Powerful, all-in-one solution
SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.
Samsung Workspace secured by Knox
With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security.
WiFi and Bluetooth built-in
Built-in WiFi and Bluetooth allow for more personalized and interactive services as well as simplifying how businesses showcase content. Whether it’s to make networking simpler or enabling interactive beacon technology in-store, QBR series displays help businesses move into the future of retail.
Specifications:
Panel
- Diagonal Size49"
- TypeEdge LED BLU
- Resolution3840*2160 (4K UHD)
- Pixel Pitch(mm)0.093 x 0.279
- Active Display Area(mm)1073.78(H) x 604.00(V)
- Brightness(Typ.)350 nit
- Contrast Ratio4000:1
- Viewing Angle(H/V)178/178
- Response Time(G-to-G)8ms(Typ.)
- Display Colors16.7M(True Display) 1.07B(Ditherd 10bit)
- Color Gamut92% (DCI-P3, CIE 1976)
- Operation Hour16/7
- Haze2%
Display
- Dynamic C/RMEGA
- H-Scanning Frequency30 ~ 81kHZ
- V-Scanning Frequency48 ~ 75HZ
- Maximum Pixel Frequency594MHz
Sound
- Speaker TypeBuilt in Speaker(10W + 10W)

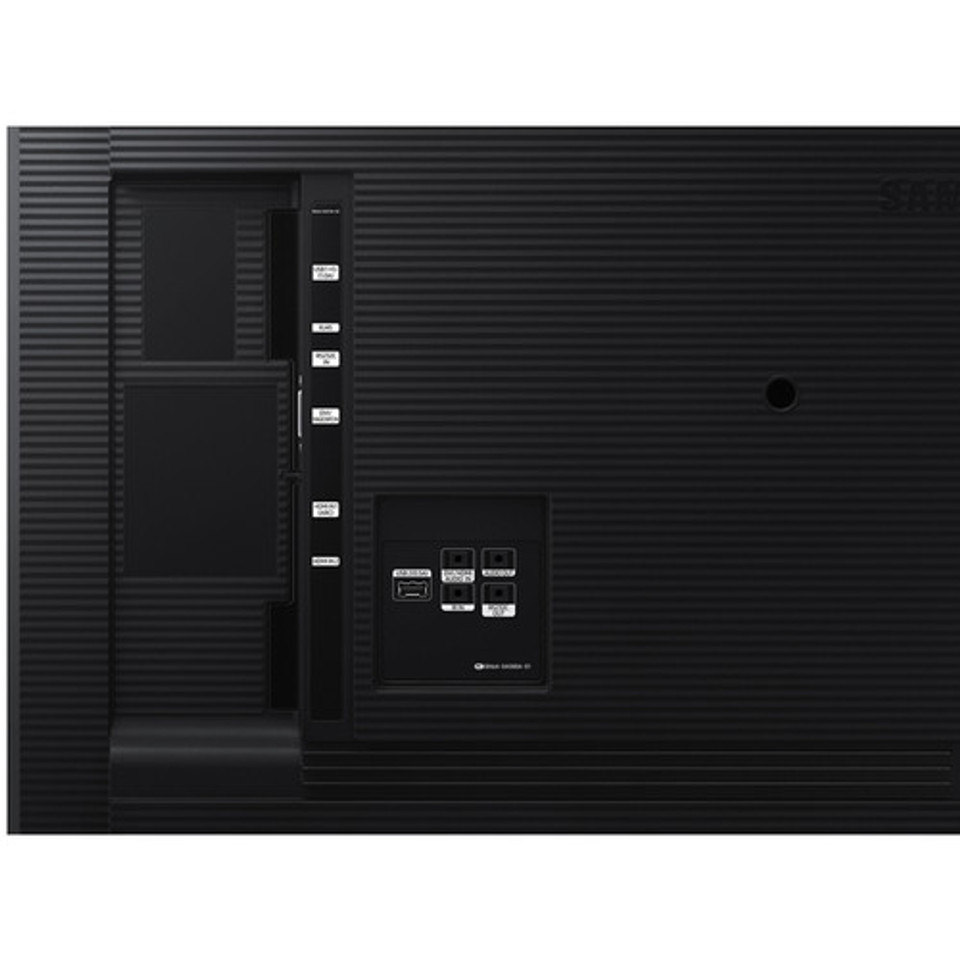

Connectivity
Input
- RGBDVI-D
- VideoHDMI 2.0 (2)
- HDCPHDCP 2.2
- AudioStereo Mini Jack, DVI/HDMI/Audio(Common)
- USBUSB 2.0 x 2
Output
- AudioStereo Mini Jack
- External ControlRS232C(in/out) thru stereo jack, RJ45
- External SensorIR
Power
- TypeInternal
- Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
- Max[W/h]138
- Typical[W/h]103
- Rating[W/h]125
- BTU(Max)470.5
- Sleep mode0.5
Mechanical Specification
Dimension (mm)
- Set1099.2 x 631.5 x 46.3
- Package1247 x 772 x 152
Weight (kg)
- Set13.5
- Package18
- VESA Mount (mm)200 X 200
- Stand TypeFoot Stand (Optional)
- Bezel Width (mm)9.2mm(U/L/R), 11.2mm(B)
Operation
- Operating Temperature 0 ~ 40
- Humidity 10 % ~ 80 %
Feature
- Key FeaturesUHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
- OrientationN/A
- Remote ControlN/A
- Special Features H/W: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x, Wi-Fi/BT S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
Internal Player
- ProcessorCoretex A72 1.7GHz Quad-Core CPU
- On-Chip Cache MemoryL1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
- Clock Speed1.7GHz
- Main Memory Interface2.5GB LPDDR4 1.5GHz 64bit
- GraphicsGraphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)
- Storage (FDM)8GB (3.88GB Occupied by O/S, 4.12GB Available)
- Multimedia*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG
- IO PortsUSB 2.0
- Operating SystemTizen 4.0 (VDLinux)
Certification
- Safety60950-1
- EMCClass B
- Security802.1x(WPA2 Enterprise): EAP-TLS, EAP-TTLS, EAP-PEAP
Accessory
- IncludedQuick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Optional
- StandSTN-L4355F
- Mount WMN4070SE
- SpecialtyCML400XK
