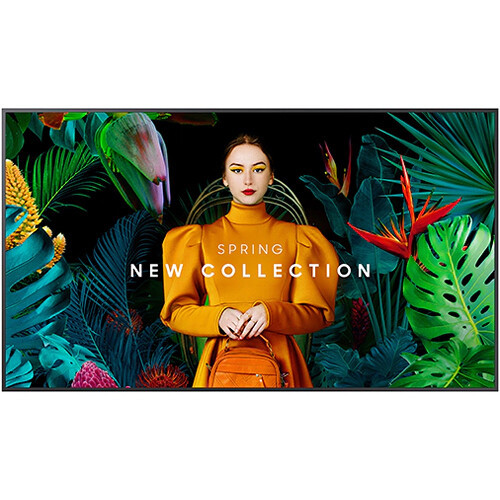

Product Overview
Introducing the QMC series, the slimmest display in the Samsung’s UHD signage offerings. This products deliver an unparalleled slim design that fits into any business, while delivering the visual quality to make a big impact. The sleek form factor is easily installed to fit any room design and delivers stunning visual performance. Dynamic Crystal Color and Quantum Processor Lite 4K delivering consistent, lifelike colors to any content. This is not just a display for simple advertising. It’s a display that brings the solutions, tools, and picture quality to grow to your business, no matter what industry you’re in.
Specifications
Display
Display Size 64.5"
Aspect Ratio 16:9
Display Orientation Landscape, Portrait
Native Resolution 3840 x 2160
Maximum Brightness 500 nits / cd/m2
Contrast Ratio 4000:1
Response Time 8 ms
Refresh Rate 60 Hz
Color Gamut 72% NTSC
Viewing Angle (H x V) 178 x 178°
Screen Area 56.24 x 31.63" / 1428.48 x 803.52 mm
Horizontal Frequency 30 to 81 kHz
Vertical Frequency 48 to 75 Hz
Dot Pitch 0.372 x 0.372 mm
Pixels Per Inch (ppi) 68 ppi
Finish Anti-Glare / Matte
Surface
Haze Level 25%
Video
TV Tuner No

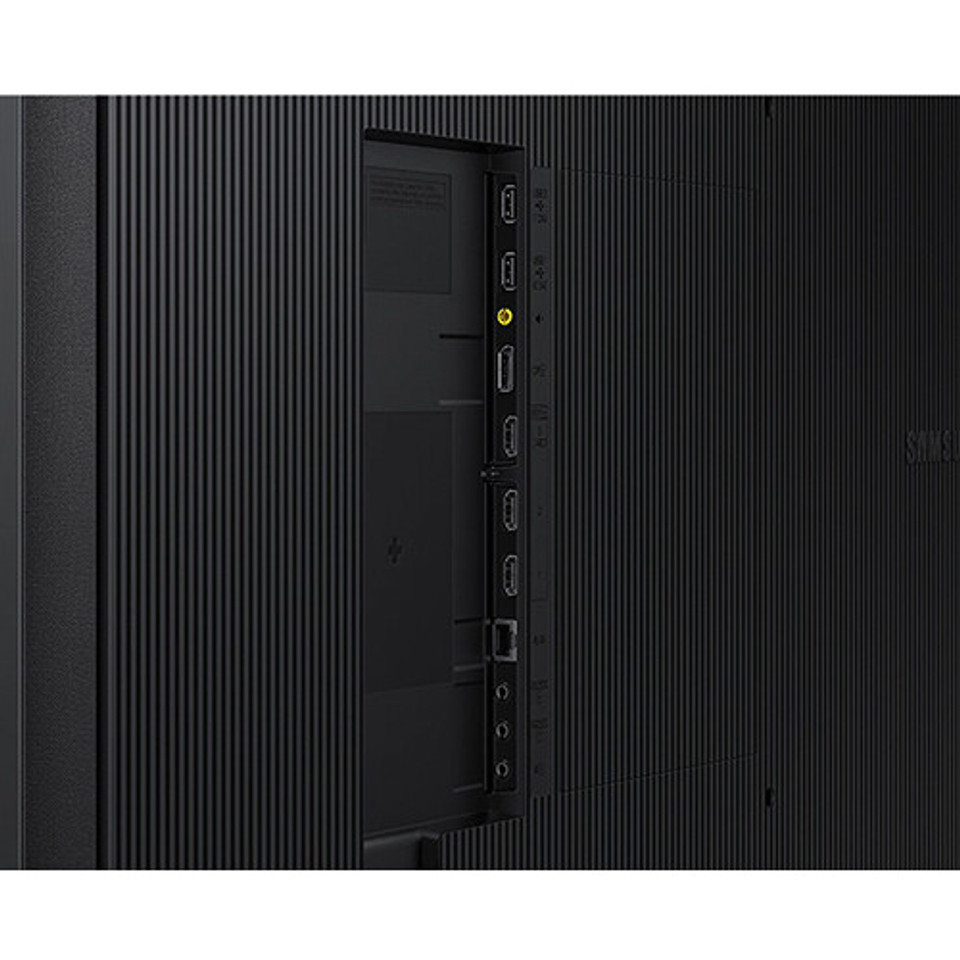

Connectivity
Inputs 3x HDMI 2.0 ,1x DisplayPort 1.2
Outputs 1x 1/8" / 3.5 mm (Analog Audio)
HDCP Support Yes
Wireless Wi-Fi / Bluetooth
USB I/O 2x USB-A 2.0 (Audio/Photo/Video/Control)
Ethernet I/O 1x RJ45 (Unspecified Ethernet)
Other I/O 1x DE-9/DB-9 Serial (RS-232C) Control Input 1x DE-9/DB-9 Serial (RS-232C) Control Output
Speaker
Built-In Speakers Yes, 2x 10 W
Speaker Configuration 2-Channel
Hardware
Smart TV Tizen
Storage 16 GB
Mobile App Compatible Yes: Android & iOS
Media Card Reader No
Built-In Mic No
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 10 to 80%
Storage Humidity 5 to 95% (Non-Condensing)
Electrical
Power Consumption Standby: < 0.5 W
Input Power 100 to 240 VAC, 50 / 60 Hz
Power Adapter Type Internal
General
Certifications ENERGY STAR 8.0, EPEAT
Mounting-Hole Pattern 400 x 300 mm
Environmental Protection Dust-Resistant (IP5X)
IK Rating No
Bezel Thickness 11.5 mm (Bottom/Right/Top/Left)
Duty Cycle 24 Hours / 7 Days
Dimensions 57.4 x 32.8 x 1.1" / 1456.8 x 831.9 x 28.5 mm
Weight 46.7 lb / 21.2 kg
Packaging Info
Package Weight 64.5 lb
Box Dimensions (LxWxH) 63 x 37 x 6"
