Product Overview
Samsung QM65R Overview
Advertise your product or business digitally with the Samsung QMR Series 65" Class HDR 4K UHD Commercial Smart LED Display. It features 500 cd/m² of brightness with a 4000:1 typical contrast ratio to help enhance visibility in bright environments. The QMR is IP5X certified, making it suitable for a variety of installation types. It has a DVI-D, DisplayPort, two HDMI, and two USB ports, plus Wi-Fi and Bluetooth connectivity to provide a variety of interface options. For added convenience, the QMR includes a remote control.
Key Features
- 4K UHD (3840 x 2160) Native Resolution
- 4000:1 Typical Contrast Ratio
- HDR10 & HDR10+ Compatibility
- Built-In Wi-Fi Connectivity
- Integrated Media Player
- DVI-D, DisplayPort, & HDMI
- IP5X- and 24/7-Rated
- Dual Built-In 10W Speakers

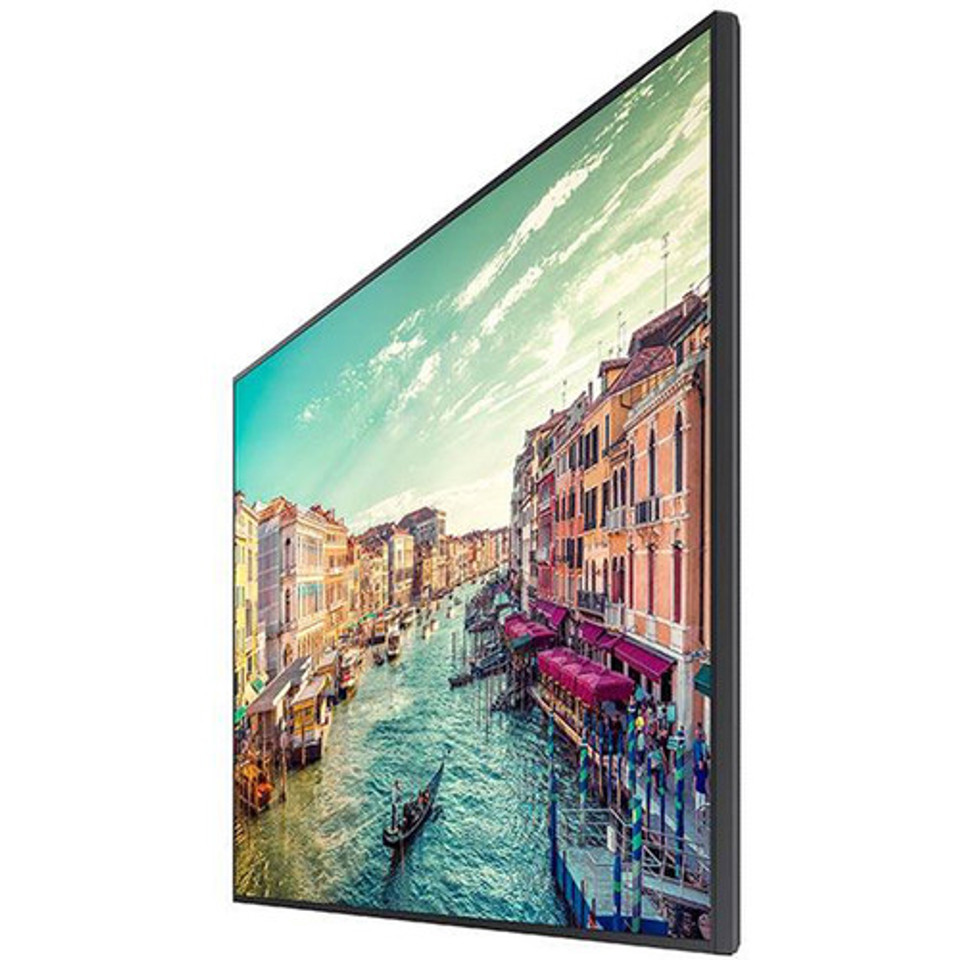

Slim and Symmetrical Design
Narrow bezels and a symmetrical design allow for a seamless integration in to any environment with simplified mounting and installation.
Dynamic Crystal Color
Experience crystal clear, lifelike color with up to a billion shades of color. QMR series displays deliver picture-perfect results virtually every time, so you can see every color in a rainbow or every shade in a spectacular sunset.
Cisco Certified Compatible Display
The QMR series is fully compatible with Cisco WebEx Room Kit products. The Cisco WebEx Room Kit is a powerful video collaboration tool that integrates a camera, codec, speakers, and microphones into a single device. Combined with Samsung's QMR displays, you get a powerful conferencing solution for your business.
Incredible 4K UHD Non-Glare Picture Quality
4K UHD coupled with 500 cd/m² brightness allows for true color and clarity without glare. Experience the pure colors, sharp contrast, and high brightness you expect.
Intelligent UHD Upscaling
Enhance the clarity and detail of standard and high definition content to the best possible picture quality with the UHD upscaling picture improvement process.
HDR powered by HDR 10+
Experience superior brightness, greater detail in blacks, and authentic color with HDR powered by HDR 10+.
Powerful, All-in-One Digital Signage Solution
Samsung's SMART Signage Platform 6.0 and the embedded MagicINFO Player S6, backed by the powerful Tizen operating system, boosts your display's overall performance through system-on-chip (SoC) technology and allows for easy content management and playback, without the need for an external set-back box or computer.
Built-In Wi-Fi and Bluetooth
Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.
Elevate the Power of Your Displays
Streamline signage management with optional Samsung MagicINFO software. The all-in-one platform delivers seamless authoring, deployment, and playback on remote digital signage. Your content teams can update message designs and schedules from any location at any time.

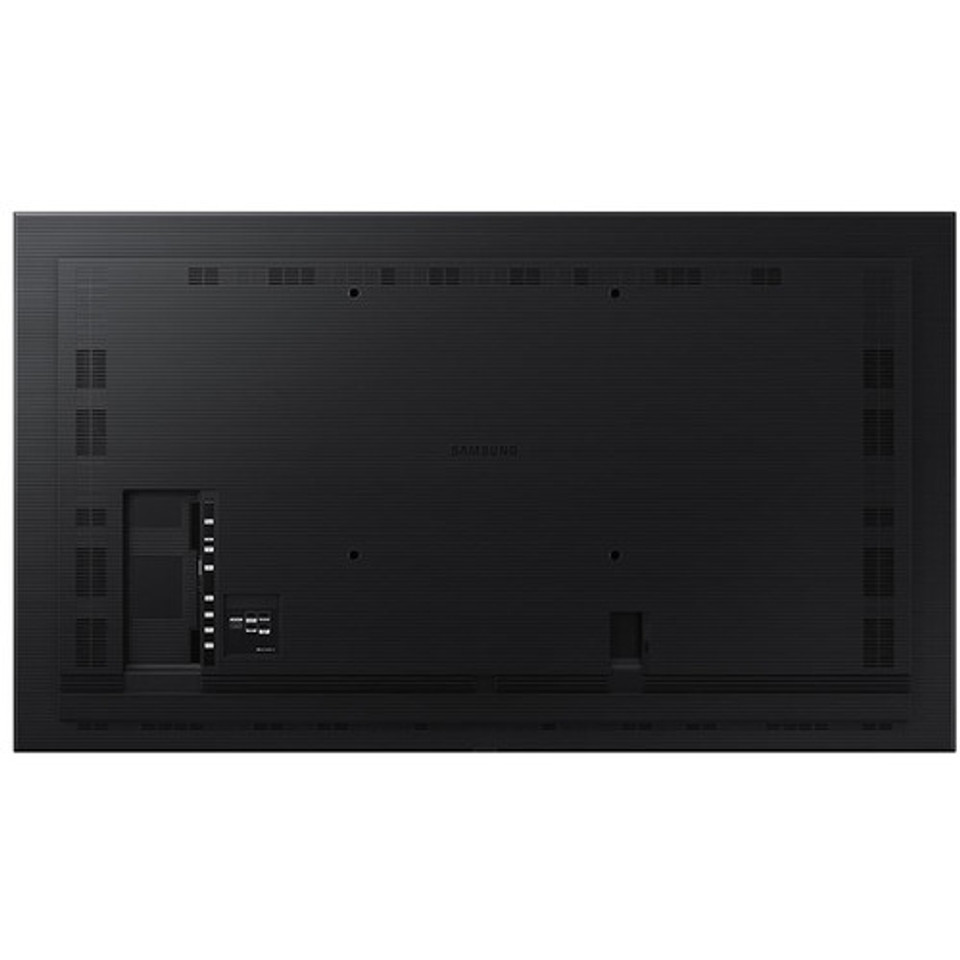

Clean Cable Management
The back of the QMR series features stylish grooves that cables can be threaded through, keeping connections out of sight.
Additional Features
- Temperature sensor
- Pivot Display
- Clock Battery (up to 168 hours clock keeping)
- Video Wall Daisy Chain
- Auto Source Switching and Recovery
- LFD Home UI
- Button Lock
- Hot Key Option
- Plug and Play (initial setting)
Samsung QM65R Specs
Display
| Screen Size (Diagonal) | 64.5" |
| Resolution | 3840 x 2160 |
| Panel Type | LCD |
| Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
| Color Gamut | 92% DCI-P3 92% CIE1976 |
| HDR Compatibility | HDR10, HDR10+ |
| Brightness | 500 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 4000:1 |
| Response Time | 8 ms |
| Backlighting Technology | Edge LED |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI 2.0 Audio, Video 1 x DisplayPort 1.2 Audio, Video 1 x DVI-D Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x HDMI 2.0 – Audio, Video 1 x 1/8" / 3.5 mm – Audio |
| USB Ports | 2 x USB 2.0 Type-A |
| Ethernet Ports | 1 |
| Control | IR via 1/8" / 3.5 mm Input RS-232C via 1/8" / 3.5 mm Input |
| Wi-Fi | Built-in |
| Bluetooth | Yes |
General
| Display Orientation | Landscape, Portrait |
| HDCP Support | Yes, Version 2.2 |
Surface
| Surface Treatment | Anti-Glare |
Audio
| Built-In Speakers | Yes, 2 x 10 W |
| Speaker Configuration | 2-Channel |
Hardware
| Operating System | Tizen 4 |
| CPU | 1.7 GHz Cortex A72 Quad-Core |
| Storage | 8 GB |
| RAM | 2.5 GB LPDDR4 1500 MHz |
Convenience
| Supported Video File Types | H.263, H.264/AVC, H.265/HEVC, MPEG, MPEG2, MPEG4, VC-1, VP8, VP9 |
| Supported Audio File Types | AC3 |
| Supported Photo File Types | JPEG, PNG |
Electrical
| Power Consumption | Typical: 131.0 W Maximum: 181.5 W Standby: 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
| Certifications | ENERGY STAR, as per Manufacturer |
Physical
| Wall Mounting | 400 x 400 mm |
| IP Rating | IP5X |
| Bezel Thickness | 9.2 mm (Right/Top/Left) 11.2 mm (Bottom) |
| Duty Cycle | 24 Hours / 7 Days |
| Dimensions | 57.2 x 32.7 x 1.8" / 1453.9 x 831.0 x 46.3 mm |
| Weight | 54.89 lb / 24.9 kg |
Packaging Info
| Package Weight | 72 lb |
| Box Dimensions (LxWxH) | 63 x 38 x 7" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
