Product Overview

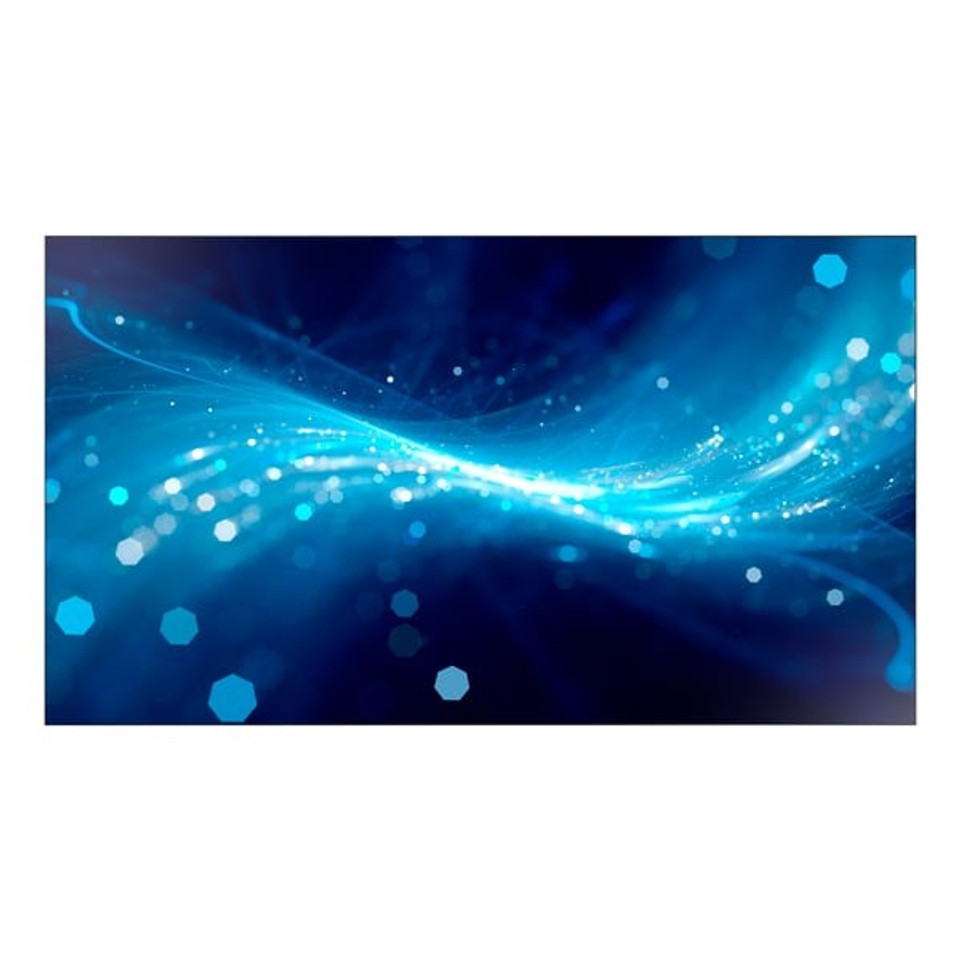

Create immersive, virtually seamless videowall matrices thanks to the extreme narrow bezels of the Samsung UM46N-E. Built to operate around the clock, a non-glare, 500nit panel delivers improved visibility even in bright conditions. Factory calibration
provides brightness and color uniformity across multiple displays. And you can achieve 4K UHD resolution when you daisy chain multiple displays with the Display Port 1.2 digital loop-out feature.
- Extreme narrow bezels at 1.7mm bezel-to-bezel (BtB) allow you to create virtually seamless videowalls
- Non-glare panel with 500nit brightness offers improved visibility of your message
- Dependable 24/7 continuous run-time to meet around the clock operating requirements
- Daisy chain multiple displays with Display Port 1.2 digital loop-out to achieve 4K UHD (3840×2160) resolution
Extreme Narrow 1.7mm Bezels
The UM46N-E features incredibly thin bezels at a mere 1.7mm bezel-to-bezel. So you can create virtually seamless videowalls with elegance and sophistication.
Non-Glare, 500nit Panel for Improved Visibility The non-glare panel features 500nit brightness to improve visibility of your message in bright ambient light.
Built for 24/7 Use
These displays are built for dependable 24/7 continuous use with commercial-level cooling technologies. So you can meet around the clock operating requirements in venues ranging from retail storefronts to public spaces.
Factory Calibration
Factory calibration to precise Samsung specification helps to ensure uniform brightness and minimize color difference across multiple displays, so you can experience color uniformity right out of the box for consistent videowall matrices. Plus, you can
also manage the brightness and color uniformity with Samsung's Color Expert Pro, a powerful, free digital signage software program
Easy Mobile Calibration
Samsung’s Color Expert Pro Mobile solution provides quick and easy videowall calibration through a mobile camera. With the solution’s intuitive interface, you can adjust the white balance of multiple displays simultaneously in up to a 5×5
videowall, without the need for additional equipment
Achieve Beautiful 4K UHD Videowalls
Daisy chain up to 25 displays with the Display Port 1.2 digital loop-out feature to achieve 4K UHD (3840×2160) resolution. So you can deliver exceptional content with fine detail for an impactful experience, without the cost of additional PCs, graphic
cards or splitters.
Contrast Ratio | 4000:1 | |||||||
---|---|---|---|---|---|---|---|---|
Viewing Angle | 178 degrees (H) / 178 degrees (V) | |||||||
Response Time | 8 ms | |||||||
Screen Size (Diagonal) | 46" | |||||||
Dimension w/o Stand (WxHxD) | 40.15" x 22.6" x 3.8" | |||||||
Inputs | RGB: Analog D-SUB, DVI-D, Display Port 1.2 VIDEO: HDMI 2.0 (2) HDCP: HDCP 2.2 AUDIO: Stereo Mini Jack USB: Only F/W upgrade | |||||||
Outputs | RGB: DP1.2(Loop-out) AUDIO: Stereo Mini Jack | |||||||
Weight without Stand | 34.6 lbs | |||||||
Monitor Configuration | Video Wall | |||||||
Brightness (cd/m) | 500 | |||||||
Native Resolution | 1920 x 1080 | |||||||
Display orientation | Landscape & Portrait | |||||||
Duty Cycle (Hours of Use) | 24/7 | |||||||
WiFi | No | |||||||
Communication Port | RS232C, RJ45 |
