Product Overview
Samsung interactive display WAC series offers a dynamic, engaging experience designed for the classroom of the future. WAC Series is an Android 11 OS based product, providing intuitive and convenient usability to teachers. With a variety of screen mode options, including split screen mode and multi-window mode, this display enables users to easily present and read multiple windows at once. Up to nine screens can be shared simultaneously for maximum productivity in real time, ensuring every student is included and engaged.
- Samsung interactive display WAC series offers a dynamic, engaging experience designed for the classroom of the future.
- WAC series provides intuitive and convenient user experience for teachers. WAC series makes it easy for teachers to boost the learning experience, and enables customization of the home screen with frequently-used apps for added convenience.
- A variety of screen mode options, including split screen mode and multi-window mode, enables teachers to easily display and to easily display and multitask at the same time on the WAC series.
- With WAC, the teacher can have students screen mirror up to nine devices simultaneously for improved student engagement.
- Important apps and tools can be conveniently added to the home screen bar for easy access. Intelligent Apps, such as timers and stopwatches, help teachers get creative with their lessons to foster a learning environment that students love.
- With the display's advanced multi-touch capabilities, multiple users can write and draw on the whiteboard at the same time. With infinite whiteboarding and useful tools, WAC is best in its class to ensure engagement.
Specifications
Display
Display diagonal 2.18 m (86")
Display brightness 400 cd/m²
Display resolution 3840 x 2160 pixels
HD type 4K Ultra HD
Panel type ADS
Native aspect ratio 16:9
Contrast ratio (typical) 1200:1
Response time 8 ms
Touchscreen Yes
Touch technology Multi-touch
Touchscreen type Infrared
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Pixel pitch 429.6 x 429.6 mm
Colour gamut 72%
Maximum pixel clock 78 MHz
Haze rate 25%
Computer system
Operating system installed Android 13
Maximum internal memory 64 GB
Projector
Built-in projector No
Network
Wi-Fi Yes
Bluetooth Yes
Ethernet LAN Yes

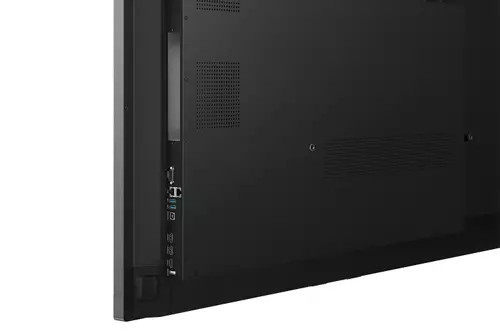

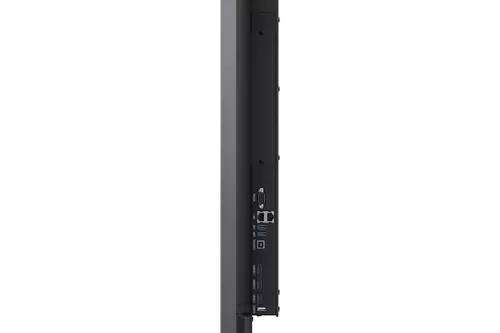

Ports & interfaces
HDCP Yes
HDCP version 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 2.0 ports quantity 1
HDMI ports quantity 3
HDMI version 2.0
Ethernet LAN (RJ-45) ports 2
Microphone connectivity 3.5 mm
Audio output 1
RS-232 ports 2
IR input port Yes
Video out Yes
Ergonomics
Product colour Grey
VESA mounting Yes
Panel mounting interface 800 x 400 mm
Certification Part 15, Subpart B Class A KS C9832, KS C9835 EN55032:2015/A11:2020/A1:2020,EN 55035:2017/A11:2020 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3 IEC 62368-1 Edtion 3&IEC 60950-1 UL62368-1 edition 3 GB4943.1-2022 PSB+ IEC 62368-1 NOM-019 K 62368 IRAM+ IEC 62368-1 EAC+ IEC 62368-1 INMETRO+ IEC 62368-1 SASO+ IEC 62368-1 BSMI+ IEC 62368-1 IEC 62368-1/AS/NZS 62368-1 IEC60950-1 / IS13252
Performance
Operating hours (hours/days) 12/7
Power
Power consumption (typical) 486 W
Power consumption (sleep) 0.5 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 1
Weight & dimensions
Width 1957 mm
Depth 99 mm
Height 1160 mm
Weight 56.5 kg
Bezel width 1.64 cm
Packaging data
Package width 2110 mm
Package depth 225 mm
Package height 1283 mm
Package weight 74.3 kg
Quantity per pack 1 pc(s)
