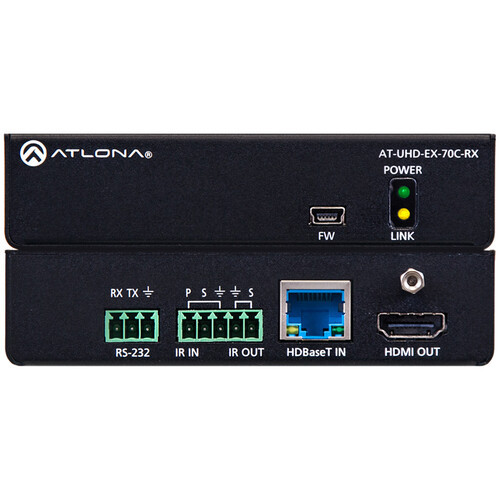

Name: Atlona AT-UHD-EX-70C-RX 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE (70m)
Brand: Atlona
SKU: AT-UHD-EX-70C-RX
Price: 368.98 USD
Availability: InStock

Product Overview

Atlona AT-UHD-EX Overview

Use the Atlona 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE (70m) to convert an incoming HDBaseT signal to HDMI and connect it to a display or projector. This receiver offers connections for HDMI video and audio, bidirectional IR control, and RS-232 control all over a single HDBaseT connection. HDBaseT is advantageous as it allows for longer cable distances than HDMI alone, while carrying other important signals along a single cable. 4K HDMI resolutions are supported, as is HDCP 2.2 in order to play protected high-resolution content. As this receiver accepts downstream power using the HDBaseT connection, no separate power supply is required.

4K/UHD Capability

Compatible with Ultra High Definition sources and displays
Prepares AV systems for technological improvements, 4K/UHD streaming services, and playback devices

HDCP 2.2 Compliant

Adheres to latest specification for High-bandwidth Content Protection
Allows protected content stream to pass between devices

Remote-Powered Receiver

Industry standard IEEE 802.3af PoE for receiver is supplied by transmitter over HDBaseT

Bidirectional Extension of RS-232 and IR Control Commands

Control signals travel over HDBaseT link for maximum control system flexibility

Extended Distance HDMI Extension

Receives HDMI signals up to 230' @ 1080p and 130' @ 4K/UHD using Cat 6a/7 cable

Flexible Bidirectional IR Control Capabilities

IR input designed to work with 12V IR receivers for source control

Rear Panel I/O Connectors

Placement of ports on rear panel simplifies wire management

Multi-Channel Audio Compliant

Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, and DTS-HD Master Audio
Allows any multi-channel audio stream to be used within a professional audio system

Field Updatable Firmware

Front panel USB port provides an easy means for kit upgrades
Ensures long term system return on investment

Front Panel Power and Link Status LEDs

LED indicators provide power and HDBaseT link status information
Provides easy setup and troubleshooting

Low-profile, 1" high quarter-rack width enclosure

Easy installation in confined spaces behind displays and above projectors

Atlona AT-UHD-EXSpecs

Video Resolutions	4096 x 2160 @ 24/25/30/50/60 Hz, 3840 x 2160 @ 24/25/30/50/60 Hz, 2048 x 1080p, 1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i @ 50/59.94/60 Hz, 720p @ 50/59.94/60 Hz, 576p, 576i, 480p, 480i
VESA Configuration	2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800 1280 x 768, 1152 x 768, 1024 x 768, 800 x 600, 640 x 480
Colorspace Standards	YCbCr, RGB
Chroma Subsampling	4:4:4, 4:2:2, 4:2:0
Color Depth	8-bit, 10-bit, 12-bit
Audio	Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz Bit Rate: Up to 24-bit
Distance	Cat 5e/6 @ 4K up to 115' / 35 m Cat 6a/7 @ 4K up to 130' / 40 m Cat 5e/6 @ 1080p up to 197' / 60 m Cat 6a/7 @ 1080p up to 230' / 70 m HDMI IN/OUT @ 4K up to 15' / 5 m HDMI IN/OUT @ 1080p up to 30' / 10 m
Signal	Bandwidth: 10.2 Gbps CEC: Pass through HDCP: Supports up to 2.2
Connectors	1 x Mini-USB type B, firmware 1 x RJ45, HDBaseT 1 x HDMI type A, HDMI output 1 x 5-pin captive screw, IR 1 x 3-pin captive screw, RS-232 1 x PoE from TX
Temperature	Operating: 32 to 104°F / 0 to 40°C Storage: -4 to 140°F / -20 to 60°C Humidity: 20 to 90%, non-condensing
Power Consumption	10.89 W
Power Supply	Input: 100 - 240 VAC, 50/60 Hz Output: 48 VDC, 0.83 A
Certifications	Power Supply: CE, FCC, RoHS, cULus, RCM, CCC Receiver: CE, FCC
Dimensions	With Ears: 1.1 x 4.7 x 3.5" / 27 x 119 x 89 mm Without Ears: 1 x 4.3 x 3.5" / 25 x 109 x 89 mm
Weight	0.7 lb / 330 g
