Product Overview

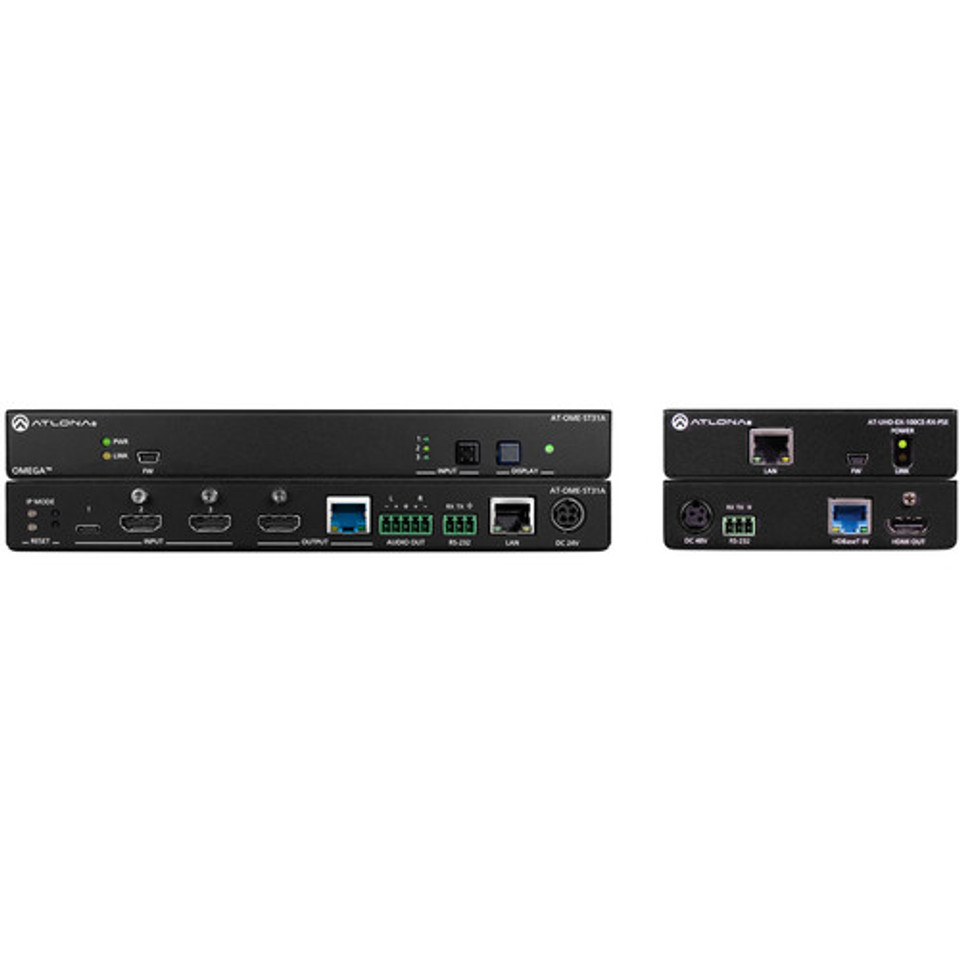

Extend your 4K HDMI signal up to 330' over your HDBaseT network with the Atlona HDBaseT TX/RX for HDMI and USB-C. Featuring advanced functions, this transmitter / receiver kit is ideal for small studios, educational institutions, houses of worship, and even home networks. The included transmitter has an HDMI output that allows you to scale the 4K input to HD for viewing locally on HD monitors, while it simultaneously streams via HDBaseT protocol over your network. The receiver is powered by AC and powers the transmitter via the HDBaseT connection, allowing you to set up your 4K inputs, without having to run an AC power line. Automatic input selection of format and display control simplifies your workflow.
The power sourcing 4K/UHD HDMI over HDBaseT Receiver from Atlona supports AV signals up to 328’over category cable with Ethernet pass-through, RS-232, CEC, and Power over Ethernet. It is compatible with signals up to 4K/UHD @ 60 Hz with 4:2:0 color sub-sampling, plus embedded multi-channel audio and remote 48V power for the transmitter. The receiver is ideal for use with the AT-HDVS-200-TX transmitter (sold separately) for passing 4K signals to a display. It is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter-rack width metal enclosure for installation with rear panel I/O ports for uncluttered wire management. This PSE (Power Sourcing Equipment) device is powered via the included desktop power supply, and provides PoE to the AT-HDVS-200-TX or other PoE-compatible transmitters.
• Full support of 4K/UHD streaming services and playback devices
• Allows protected content stream to pass between devices
• Eliminates the need for the receiver to be powered remotely or by a power-injection device
• Eliminates multiple cable runs between source, control system, router, and display
• Uses easy-to-integrate category cable for low-cost, reliable system installation
• Simplifies integration of source, control system, and display
• Saves installation time and eliminates clutter
• Allows any multi-channel audio stream to be used within a professional audio system
• Ensures long term system return on investment
• Provides easy setup and troubleshooting
• Keeps devices out of sight when placed in public spaces
Specifications
Video Resolution
4096 x 2160 @ 24/25/30/50/60 Hz
3840 x 2160 @ 24/25/30/50/60 Hz
2048 x 1080p
1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz
1080i @ 50/59.94/60Hz
720p @ 50/59.94/60 Hz
576p, 576i, 480p, 480i
VESA
2560 x 2048 / 1600
2048 x 1536
1920 x 1200
1680 x 1050
1600 x 1200 / 900
1440 x 900
1400 x 1050
1366 x 768
1360 x 768
1280 x 1024 / 800 / 768
1152 x 768
1024 x 768
800 x 600
640 x 480
Color Space YCbCr, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
Analog Audio Input
Formats:
PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Sample Rate
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Rate
Up to 24-bit
Distance
Cat5e/6 @ 4K: Up to 230' (70 m)
Cat6a/7 @ 4K: Up to 328' (100 m)
Cat5e/6 @ 1080p: Up to 328' (100 m)
HDMI In/Out @ 4K: Up to 15' (5 m)
HDMI In/Out @ 1080p: Up to 30' (10 m)
Signal
Bandwidth: 10.2 Gbps
CEC: Pass-through
HDCP: Supports up to 2.2
Certification
Unit: CE, FCC
Power Supply: CE, FCC, RoHS, cULus, RCM, CCC
Temperature
Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity: 20 to 90%, Non-condensing
Power
Consumption: 15.2 W (When paired with TX)
Supply Input: 100~240 VAC, 50/60 Hz
Supply Output: 48 VDC /0.83 A
Dimensions
Without Rack Ears: 0.9 x 4.3 x 5.0" (25 x 109 x 127 mm)
With Rack Ears:1.1 x 4.7 x 5.0" (27 x 119 x 127 mm)
Weight 0.9 lb (0.4 kg)
Packaging Info
Package Weight 2.285 lb
Box Dimensions (LxWxH) 11.15 x 7.4 x 3"
