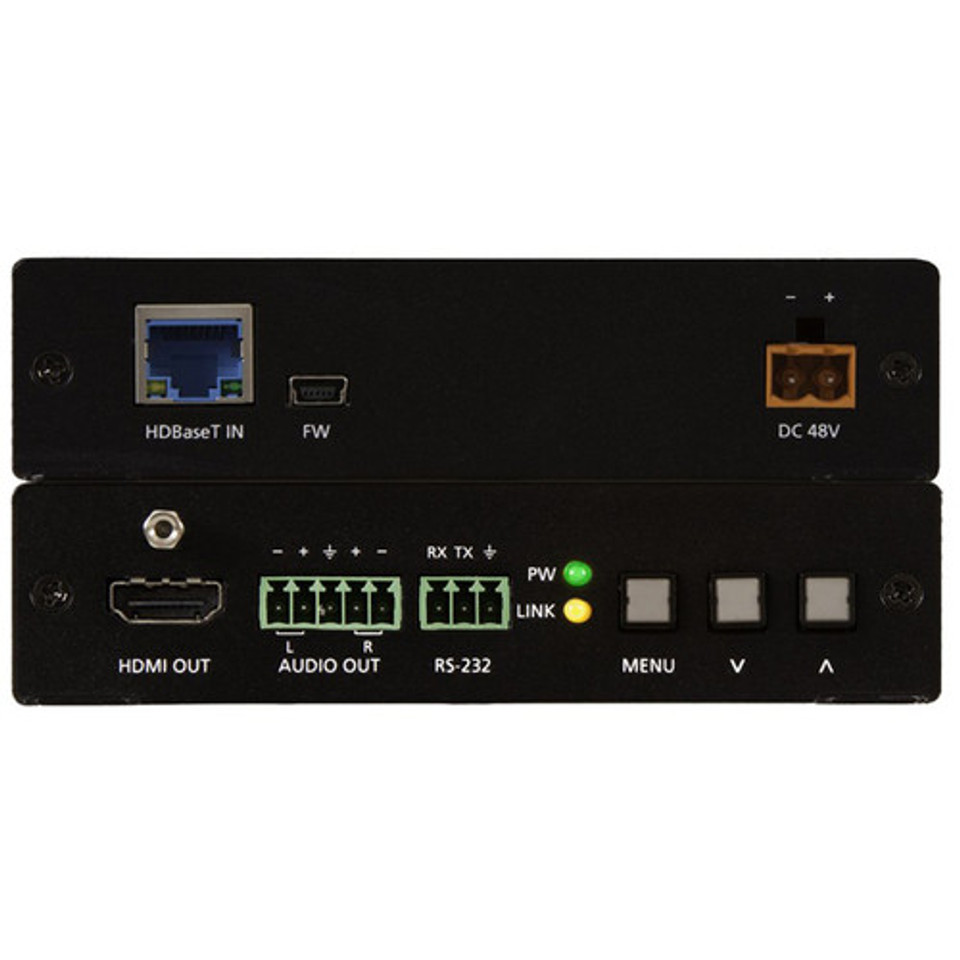

Receive 1080p HDMI and VGA signals over category cable from up to 230' with this HDBaseT Scaler Receiver from Atlona. Used in combination with an HDVS-150-TX switching transmitter (available separately), this unit provides a compact, automated A/V system with the convenience of automatic input selection, display control, and HD scaling. The HDVS-150-RX powers the HDVS-150-TX remotely through Power over Ethernet, saving time and integration costs. It can be surface-mounted behind a display or above a projector.
The HDVS-150-RX offers image adjustment capability and automatically matches incoming signals to the display's native resolution. Integrated scaling and video processing help optimize image quality and switching performance. This receiver also features audio de-embedding and third-party RS-232 control of the scaler, switcher, and display. Featuring automatic display control, the HDVS-150-RX can trigger a display to power on automatically whenever a laptop or other device is connected to the HDVS-150-TX. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-150-RX forces the display to power off. The HDVS-150-RX display control capability can also be triggered by an external control system.
- Provides two-channel, analog audio signal on balanced captive screw connectors
- Improves A/V system audio with the use of an external amplifier such as the AT-PA100-G2 (available separately)
- Receives HDMI and VGA/audio signals up to 230' at 1080p over Cat 6a/7 and 197' at 1080p over Cat 5e/6
- Uses easy-to-integrate category cable for reliable system installation
- Scales video signals up to 1080p at 60 Hz and 1920 x 1200
- Selectable input resolution from 800 x 600 to 1920 x 1200 for a PC source
- Incoming signals can be automatically scaled to the display's native resolution
- Manages EDID communications with a source connected to the HDVS-150-TX
- Allows integrators to set or match a PC's graphics resolution
- HDCP compliance can be disengaged through the on-screen menu, control software, or a control system
- Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted
- Input switching (at the AT-HDVS-150-TX), image adjustments, resolution settings, and auto-set to display's native resolution can be made from a third-party control system
- Seamless integration with larger, control system-based A/V systems
- Facilitates on/off display control
- Included software simplifies programming
- Eliminates need for complex control system in small A/V system
- Industry-standard IEEE 802.3af PoE supplied by the receiver to the AT-HDVS-150-TX transmitter over HDBaseT
- No local AC outlet is required for powering the AT-HDVS-150-TX transmitter
- Rear-panel USB port provides an easy means for device updates
Atlona AT-HDVS-150 Specs
Resolution
| Input |
1080p at 23.98/24/25/29.97/30/50/59.94/60 Hz
1080i at 50/59.94/60 Hz
720p at 25/29/30/50/59.94/60 Hz
576p, 576i, 480p, 480i
1920 x 1200RB
1680 x 1050
1600 x 1200
1600 x 900
1440 x 900
1400 x 1050
1366 x 768
1280 x 1024
1280 x 960
1280 x 800
1280 x 768
1152 x 854
1024 x 768
800 x 600
720 x 400
640 x 480
|
| Output |
1080p 23.98/24/25/29.97/30/50/59.94/60 Hz
1080i 50/59.94/60 Hz
720p at 25/29/30/50/59.94/60 Hz
1920 x 1200
1680 x 1050
1680 x 1200
1400 x 1050
1366 x 768
1280 x 1024
1280 x 800
1024 x 768
|
| Color Space |
YUV, RGB
|
| Chroma Subsampling |
4:4:4, 4:2:2
|
| Color Depth |
8-, 10-, 12-bit
|
Audio
| Analog |
PCM 2-channel (de-embedded)
|
| HDMI Out |
PCM 2-channel
|
| HDBaseT |
In: PCM 2-channel
|
| Sample Rate |
32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz
|
| Bit Rate |
Up to 24-bit
|
Max Cable Distances
| Transmission Range |
Up to 197' / 60 m Over Cat 5e/6
Up to 230' / 70 m Over Cat 6a/7
Up to 30' / 10 m HDMI in/out
|
Signal
| Bandwidth |
6.75 Gb/s
|
| CEC |
No
|
| HDCP Compliant |
1.4
|
Temperature
| Operating |
32 to 104°F / 0 to 40°C
|
| Storage |
-4 to 140°F / -20 to 60°C
|
| Humidity |
20 to 90% non-condensing
|
Power
| Consumption |
15 W (varies per paired transmitter)
|
| Supply |
Input: 100-240 VAC ~ 50/60 Hz
Output: 48 VDC / 0.83 A
|
Certification
| Device |
CE, FCC
|
| Power Supply |
CE, FCC, Level VI, RoHS, cULus, RCM, CCC
|
Physical
| Dimensions |
1.18 x 4.80 x 4.92" / 3.0 x 12.2 x 12.5 cm
|
| Weight |
0.67 lb / 0.31 kg
|
Packaging Info
| Package Weight |
2.2 lb
|
| Box Dimensions (LxWxH) |
11.2 x 7.3 x 2.9"
|
