Product Overview
Chief LVS1U Overview
The Chief ConnexSys Video Wall Landscape Mounting System supports 42 to 80" displays up to 150 lb on a single strut channel for quick row-leveling. It can extend your display up to 13.4" from the wall and supports 200 x 100 to 700 x 400 mm mount patterns in landscape orientation. It also provides -2.5 to 4° tilt adjustment. This mount includes a rail and features tool-free ClickConnect latching to secure displays. PowerZone technology provides six points of adjustment in one easy-to-access location at the top of the mount.
- Hang units on a single strut channel for quick row-leveling
- Reduced installation time, particularly for XL and recessed configurations

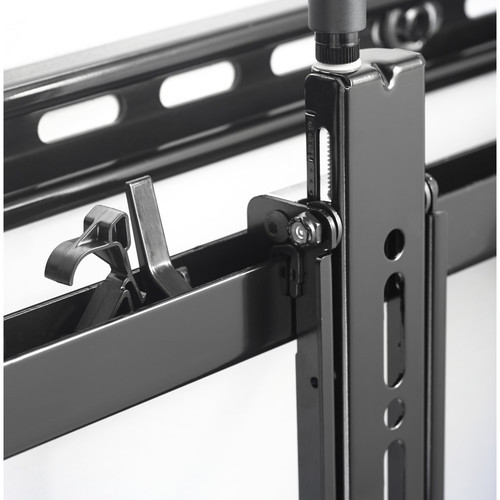

- Tool-free ClickConnect latching secures displays
- PowerZone provides six points of adjustment in one easy-to-access location at the top of the mount
- RapidDraw display release
- Kickstand provides 20° of bottom tilt access
- Rigid frame keeps displays where you set them, even after extending for service
- Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes
- Safety tested
- Universal interface
Chief LVS1USpecs
| Compatible Models | |
| Mounting-Hole Pattern | |
| Load Capacity | |
| Adjustments | |
| Orientation | |
| Distance from Mounting Surface | |
| Dimensions |
Packaging Info
| Package Weight | |
| Box Dimensions (LxWxH) |
