What's In The Box:
- Epson EpiqVision Ultra LS650
- Power cable
- Projector remote control
- Batteries
- Quick setup guide
Specifications
Projection System Epson 3-chip 3LCD technology
(ultra short throw)
Smart TV Operating System Included Android TV4
Projection Method Tabletop Front Facing
Projector Color Black or White
Driving Method Poly-Silicon TFT Active Matrix
Maximum Resolution 3840 x 2160
Native Panel Resolution 1080p (4KE)1
Native Aspect Ratio 16:9 widescreen
Focus Control Precision Manual Slider
Refresh Rate Up to 1080p 60Hz
Color Brightness Color Light Output2
: 3,600 lumens
(Color Mode: Dynamic, Light Output: 100%, Zoom: N/A,
Dynamic Contrast: Off)
White Brightness White Light Output2
: 3,600 lumens
(Color Mode: Dynamic, Light Output: 100%, Zoom: N/A,
Dynamic Contrast: Off)
Dynamic Contrast Ratio Over 2,500,000:1 (Color Mode:
Dynamic; Consumption: Normal; Zoom: Wide)
Color Reproduction Full 10-bit (up to 1.07 billion colors)
Supported Picture Sizes 60" to 120"
Throw Ratio Range 0.26 (Zoom: Wide), 0.41 (Zoom: Tele)
High Dynamic Range HLG and Full 10-bit HDR
Digital Color Processing Real-time 10-bit analog-to-digital
Light Source Laser diode
Dynamic Laser Life Up to 20,000 hours (Power Consumption:
Normal)
Projection Lens
Type Manual focus
F-Number 1.6
Focal Length 3.7 mm
Other Features
Built-In Audio Yamaha DSP 2.1; two full-range 5 W speakers
and one 10 W subwoofer (20 W total)
Operating Temperature 41 °F to 95 °F (5 °C to 30 °C)
Power Supply Voltage 100 V AC – 240 V AC ± 10%, 50/60 Hz
Power Consumption
Normal mode: 278 W
Medium mode: 244 W
ECO mode: 186 W
Network Standby 2.0 W
Energy Saving 0.5 W
Fan Noise
Normal Mode: 36 dBA
Eco Mode: 23 dBA

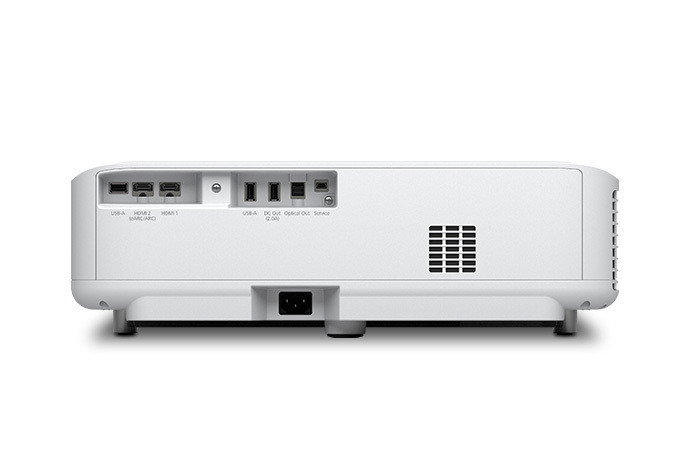

Interfaces
HDMI 2x 2.0 (18 Gbps/HDCP 2.3) (1 eARC)
Audio Out 1x S/PDIF Optical
USB Type A 3x (2x for data,
1x for 5 V/2 A power supply)
USB Type B 1x (for service only)
Built-In Android TV4
Wireless 2.4 GHz and 5 GHz
IEEE 802.11 a/b/g/n/ac
Bluetooth 5.1 Class 2
Dimensions (W x D x H)
Including Feet 18.4" x 15.7" x 6.2"
Weight 16.3 lb
Remote Control
Infrared Receiver Features Front/Rear: 19.7' (6 m)
Operating Angle Rear: Left/Right: ±30 degrees,
Upper/Lower: ±15 degrees
Eco Features
RoHS compliant
End-of-life options available7
Epson America, Inc. is a SmartWay® Transport Partner8
