Product Overview

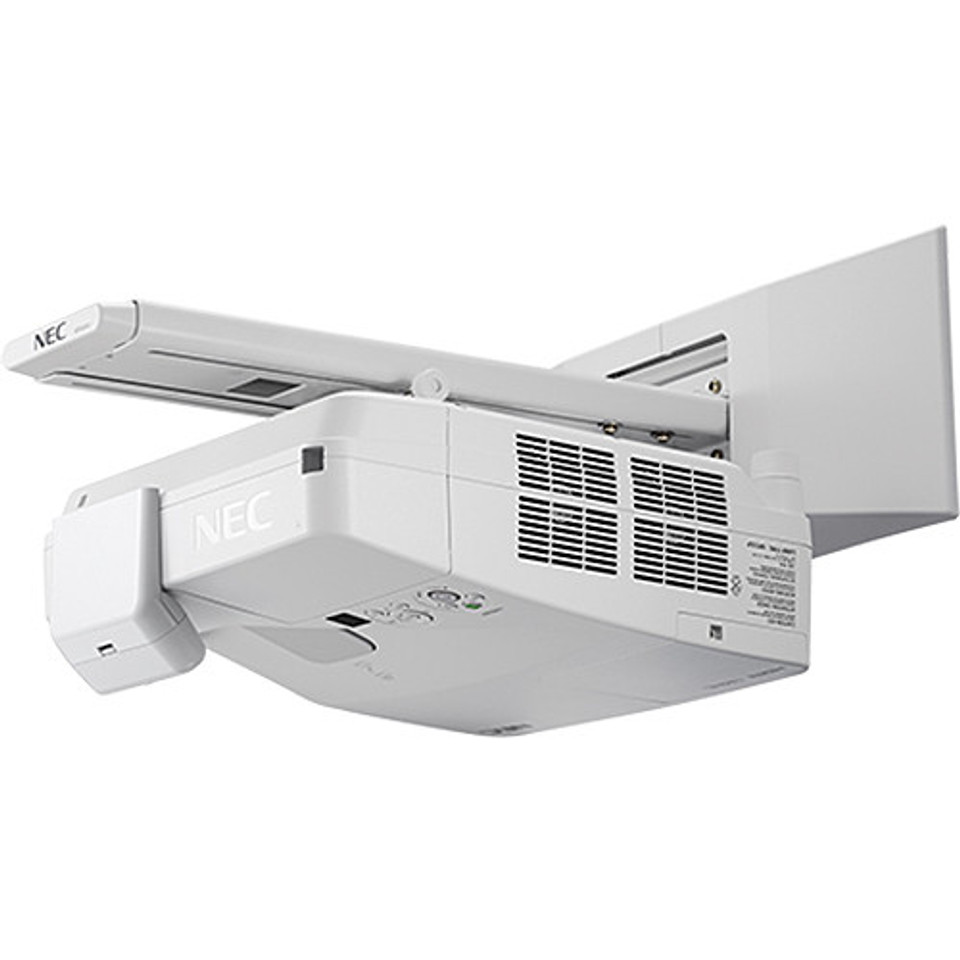

Transform your presentations with the 3500-Lumen Interactive Widescreen Ultra Short Throw Projector. This powerhouse combines crisp 3500-lumen brightness, an interactive touch module, and convenient wall mount for an immersive and engaging visual experience. Bring your content to life like never before with this innovative and versatile projector.

Product Specifications

Display

Native Resolution	WXGA 1280x800	Maximum Resolution	WUXGA 1920 x 1200
Contrast Ratio (typical)	4000:1

Synchronization Range

Horizontal (Analog/Digital)	15-100 kHz	Vertical	50-120 Hz

Signal Compatibility/Connectivity

Supported Video Standards	NTSC, NTSC4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM	SD/HD Video Signal Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility	VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA	Macintosh Signal Compatibility	Yes
Microphone	1/8 in. stereo	Sync Compatibility	Separate Sync / Composite Sync / Sync on G
External Control	RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)	Input Terminals RGB1(analog): VGA 15-pin D-sub, Component video using ADP-CV 1E adapter RGB2(digital): HDMI/HML w/HDCP RGB3(digital): HDMI w/HDCP RGB4(digital): USB A Type Video 1: RCA Audio 1: 1/8 in. stereo Audio 2: L/R RCA (shared by video sources)
Output Terminals Audio Out: Yes (variable)

Power Consumption (typical)

On	337W / 221W / 8W / 0.2W	Input Current	3.8A/1.6A
Power Requirements	100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD) Product: 16.9 x 23.3 x 4.4 in. / 429 x 592 x 112mm		Weight Net Weight: 55.0 lbs. / 24.9 kg

Environmental Conditions

Operating Temperature	41-104°F / 5-40°C	Storage	-4-122°F / -20-50°C

Limited Warranty (parts & labor)

Registered owners receive a 3 year parts and labor warranty including InstaCare next business day exchange. The lamp is covered for one year or 1,000 hours, whichever comes first.

Additional Features

Microphone Input Wireless LAN (Optional) USB Viewer 6000 hour Filter Life Auto power on ECO Mode technology Closed captioning Variable audio out Carbon savings meter Virtual Remote Sleep timer Quick power-off Built-in wall color correction Advanced AccuBlend AutoSense Wireless Image Utility

Optical

Display Technology	0.59" LCD w/ MLA	Lamp Type	255W AC
Light Output(Lumens)	3500	Light Source Life	3800 hours normal / 6000 hours eco
Screen Size (diagonal)	58 to 110 in. / 1.47 to 2.79m	Throw Ratio	0.36 to 1
Projection Distance	1.47 to 2.8 ft. / 0.45 to 0.85m	Projector Angle	49.2°
Lens Zoom: 1 to 1.4 Focus: Manual F number, fnumber: F=1.8		Keystone Correction	+/- 10° horizontal, +/- 10° vertical

Mechanical

Installation Orientation	Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear	Fan Noise	38 dB normal / 28 dB eco
Regulations	USA UL 60950-1 FCC Class B, C-UL CSA 60950-1 ICES-003 Class B
