Name: Atlona AT-OME-CS31-SA-HDBT 3x1 HDMI/HDBaseT Switcher with Audio Mixer Amplifier & USB Hub
Brand: Atlona
SKU: AT-OME-CS31-SA-HDBT
Price: 2500 USD
Availability: InStock

Product Overview

Atlona AT-OME-CS31 Overview

This 3x1 HDMI/HDBaseT Switcher from Atlona is a comprehensive AV solution tailored for classrooms and conference rooms, facilitating seamless presentation and collaboration. It offers remote and local AV source switching, a mixer/amplifier, and a USB hub. The switcher features one HDBaseT and two HDMI inputs, Ethernet, power, control, and USB 2.0 data extension up to 330'. Connected devices like laptops and document cameras are seamlessly routed to the HDMI output linked to a projector or display.

The integrated mixer/amplifier delivers either two channels of 25W or a single channel of 50W into 4 or 8 ohms, featuring a balanced stereo audio input and two unbalanced stereo audio inputs with individual level control. A balanced stereo line-level output enables the mixed signal to be transmitted to assistive listening systems or separate amplifiers.

The unit's USB system integrates a USB 2.0 host over HDBaseT and supports connections for up to four peripheral devices, including cameras, speakerphones, interactive displays, keyboards, mice, or storage devices. Designed with educational settings in mind, the versatile device incorporates unique features such as ducking, which automatically reduces the volume of other audio sources when the presenter speaks into their microphone, and PA sense, which mutes the amplifier output upon detecting activity on the school's public address system. These functions ensure that crucial lesson material and announcements are conveyed clearly.

For control purposes, dual Ethernet ports and two RS-232 ports enable automated operation by the switcher itself or integration with Velocity and other third-party control systems. The sleek and compact enclosure allows flexible mounting options, such as behind a display, under a desk, or on a table.

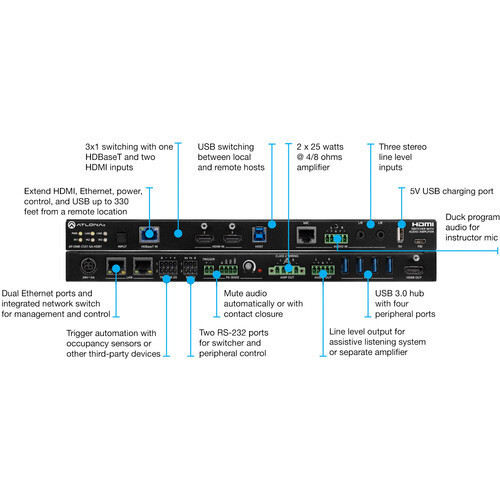

HDBaseT input supports extension of HDMI, Ethernet, power, control, and USB 2.0 data up to 330'
USB system integrates USB 2.0 host over HDBaseT with local USB-B 3.0 host port and four USB-A peripheral ports
2 x 25W at 4/8 ohms amplifier (stereo or dual mono) or 1 x 50W at 4/8 ohms (bridged)
One balanced stereo line-level input and two unbalanced stereo line-level inputs on 3.5mm connections
Balanced stereo line-level output allows the mixed signal to be passed to an assistive listening system or separate amplifier
Supports mixing three-line inputs, de-embedded HDMI, and USB audio to the amplifier and line outputs
Ducking lowers the level of all inputs when audio is present on the balanced audio input
Supports audio mute with contact closure or PA sense, so announcements can be heard clearly
Dual Ethernet ports and integrated network switch allows a single connection to an AV LAN for IP control of a display and the switcher
Two RS-232 ports for control of the switcher or peripheral devices
Two digital I/O ports for automated control from occupancy sensors or other third-party devices
5V USB charging port for powering external devices such as a Bluetooth receiver
ENERGY STAR qualified for power efficiency and cost savings
Automatic display control changes display power state via CEC, IP, or RS-232 based on active or standby mode of the switcher or status of occupancy sensors connected to the digital I/O ports
Auto-switching selects active input when sources are connected or if there is a change in source power status
Manages EDID communications with the source through the connected display’s EDID or internally stored EDID
HDCP 2.2 compliant
4K/UHD capability at 60 fps with 4:4:4 chroma sampling
Supports HDR10, HLG, and Dolby Vision HDR formats
Intuitive GUI-based configuration using integrated web server
Front-panel LED indicators provide status for power, input selection, and LAN
Low-profile enclosure for mounting behind a display or under a desk or table

Atlona AT-OME-CS31Specs

Switching Type	Software
Processing Resolution	DCI 4K at 60
Audio Processing	192 kHz / 24-Bit

Input

Video Inputs	2x HDMI (2.0) Female 1x RJ45 (HDBaseT) Female
Input Video Format	HDMI / RJ45 (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) DCI 4K at 24/25/30/50/60 fps UHD 4K at 24/25/30/50/60 fps 1080p at 23.98/24/25/29.97/30/50/60 fps 1080i at 50/60 fps 720p at 30/50/60 fps 576p at 50 fps 576i / 625 lines at 25/50 fps 480p at 60 fps 480i / 525 lines at 60 fps WUXGA (1920 x 1200) at 60 fps WUXGA+ (1680 x 1050) at 60 fps UXGA (1600 x 1200) at 60 fps WXGA+ (1440 x 900) at 60 fps SXGA+ (1400 x 1050) at 60 fps FWXGA (1366 x 768) at 60 fps SXVGA (1280 x 1024) at 60 fps WXGA (1280 x 800) at 60 fps XGA (1024 x 768) at 60 fps SVGA (800 x 600) at 60 fps VGA (640 x 480) at 60 fps 1360 x 768 at 60 fps 1280 x 768 at 60 fps
Audio Inputs	1x Block 5-Pin Stereo Analog Female 2x 1/8" / 3.5 mm TRS Stereo Analog Female 1x RJ45 Mic Female
Input Audio Format	Analog: 192 kHz / 24-Bit LPCM (Linear Pulse-Code Modulation): 192 kHz / 24-Bit
Embedded Audio Input	HDMI: 8-Channel (per Input)

Output

Video Outputs	1x HDMI (2.0) Female
Output Video Format	HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) DCI 4K at 24/25/30/50/60 fps UHD 4K at 24/25/30/50/60 fps 1080p at 23.98/24/25/29.97/30/50/60 fps 1080i at 50/60 fps 720p at 30/50/60 fps 576p at 50 fps 576i / 625 lines at 25/50 fps 480p at 60 fps 480i / 525 lines at 60 fps WUXGA (1920 x 1200) at 60 fps WUXGA+ (1680 x 1050) at 60 fps UXGA (1600 x 1200) at 60 fps WXGA+ (1440 x 900) at 60 fps SXGA+ (1400 x 1050) at 60 fps FWXGA (1366 x 768) at 60 fps SXGA (1280 x 1024) at 60 fps 1280 x 960 at 60 fps XGA (1024 x 768) at 60 fps SVGA (800 x 600) at 60 fps VGA (640 x 480) at 60 fps 1360 x 768 at 60 fps 1280 x 768 at 60 fps
Embedded Audio Output	HDMI: 8-Channel

Connectivity

Other I/O	2x RJ45 LAN Input/Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Input/Output 1x USB-C Firmware Input 2x Block 4-Pin Input 2x Block 3-Pin RS-232 Input/Output 1x Block 2-Pin Input 1x Block 4-Pin Input 1x Block 4-Pin Output 4x USB-A 3.0 / 3.1/3.2 Gen 1 Output
HDCP Support	Yes, Version 2.2
HDR Support	Yes, HDR10/Dolby Vision/Hybrid Log Gamma
DTS Compatibility	DTS Digital Surround, DTS-HD Master Audio, DTS:X
Dolby Compatibility	Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD

Hardware

Wi-Fi	No
Bluetooth	No

Power

Power I/O	1x USB-A (5 VDC ) Input 1x DIN 4-Pin (24 VDC up to 5 A) Input
Power Consumption	95.3 W

General

Operating Conditions	32 to 122°F / 0 to 50°C at 20 to 90% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C
Certifications	CE, RoHS, FCC, UL, cUL, TUV, CB, PSE, CCC
Dimensions	11.8 x 8.3 x 1" / 300 x 210 x 25 mm
Weight	3.7 lb / 1.7 kg
