Product Overview

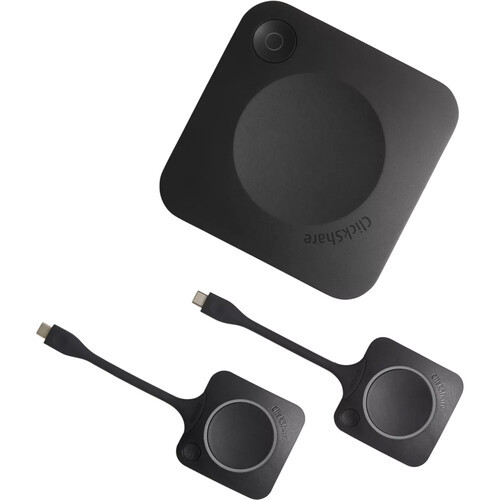

Employing an intuitive plug-and-play interface and improved meeting workflows with the desktop and mobile app, the ClickShare CX-30 Gen 2 Wireless Collaboration System with 2 Buttons from Barco offers an all-in-one conferencing solution for your office. The Gen 2 model provides fast USB-C 3.1 Gen 1 connectivity with DisplayPort 1.2 and power support. Included in the system is a base unit and two buttons for bring-your-own device compatibility using Windows or Mac operating systems and even iOS and Android phones or tablets. Facilitate both in-person and remote participant sharing with this system. When you register your ClickShare CX-30 you will receive an enhanced five-year SmartCare warranty that includes higher service levels, analytics, cloud access, and a knowledge base.
- Bring-Your-Own-Device Conference System
- Wirelessly Collaborate in Meeting Rooms
- Connect up to 32 Devices
- Base Unit & 2 ClickShare Buttons
- Share Screen in Windows or macOS
- Intuitive Meeting Flows with App
- UHD 4K30 Video Output via HDMI
- Enhanced Security, Cloud Management
- 100' Maximum Reach
- USB-C and USB-A Connections
Specifications
Device Type Wireless video/audio extender
Bundled with 2 x Barco ClickShare Buttons
Form Factor External
Localization United States
Data Link Protocol 802.11a, 802.11b/g/n, Wi-Fi 5, 802.15.1
Max Transfer Distance 98 ft
System Requirements Windows 10 or later, Apple iOS 14 or later, Android 11 or later, Apple macOS Big Sur 11 or later
Dimensions (WxDxH) 5.3 in x 5.3 in x 1.3 in
Weight 31.74 oz
Manufacturer Warranty 1-year warranty
Bundled Services 5 years Barco SmartCare
General
Device Type Wireless video/audio extender
Bundled with 2 x Barco ClickShare Buttons
Form Factor External
Localization United States
Expansion / Connectivity
Interfaces 1 x HDMI - 19 pin HDMI Type A ¦ 1 x USB 3.0 - Type A ¦ 1 x Ethernet 1000 - RJ-45 ¦ 1 x USB 3.0 - Type C
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Bundled Services 5 years Barco SmartCare
Miscellaneous
Compliant Standards FCC, DisplayPort 1.2
Networking
Connectivity Technology Wireless
Data Link Protocol 802.11a, 802.11b/g/n, Wi-Fi 5, 802.15.1
Max Resolution 3840 x 2160 @ 30 Hz
Max Transfer Distance 98 ft
Status Indicators Status
Features DFS support, 4K resolution support, Wi-Fi Miracast ready, Apple AirPlay, Google Cast, security slot (Kensington security lock compatible), touch screen support
Encryption Algorithm WPA2-PSK
Compliant Standards IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac
Power
Power Device External power adapter
Software / System Requirements
OS Required Windows 10 or later, Apple iOS 14 or later, Android 11 or later, Apple macOS Big Sur 11 or later
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 85% RH (non-condensing)
Dimensions & Weight
Width 5.3 in
Depth 5.3 in
Height 1.3 in
Weight 31.74 oz
